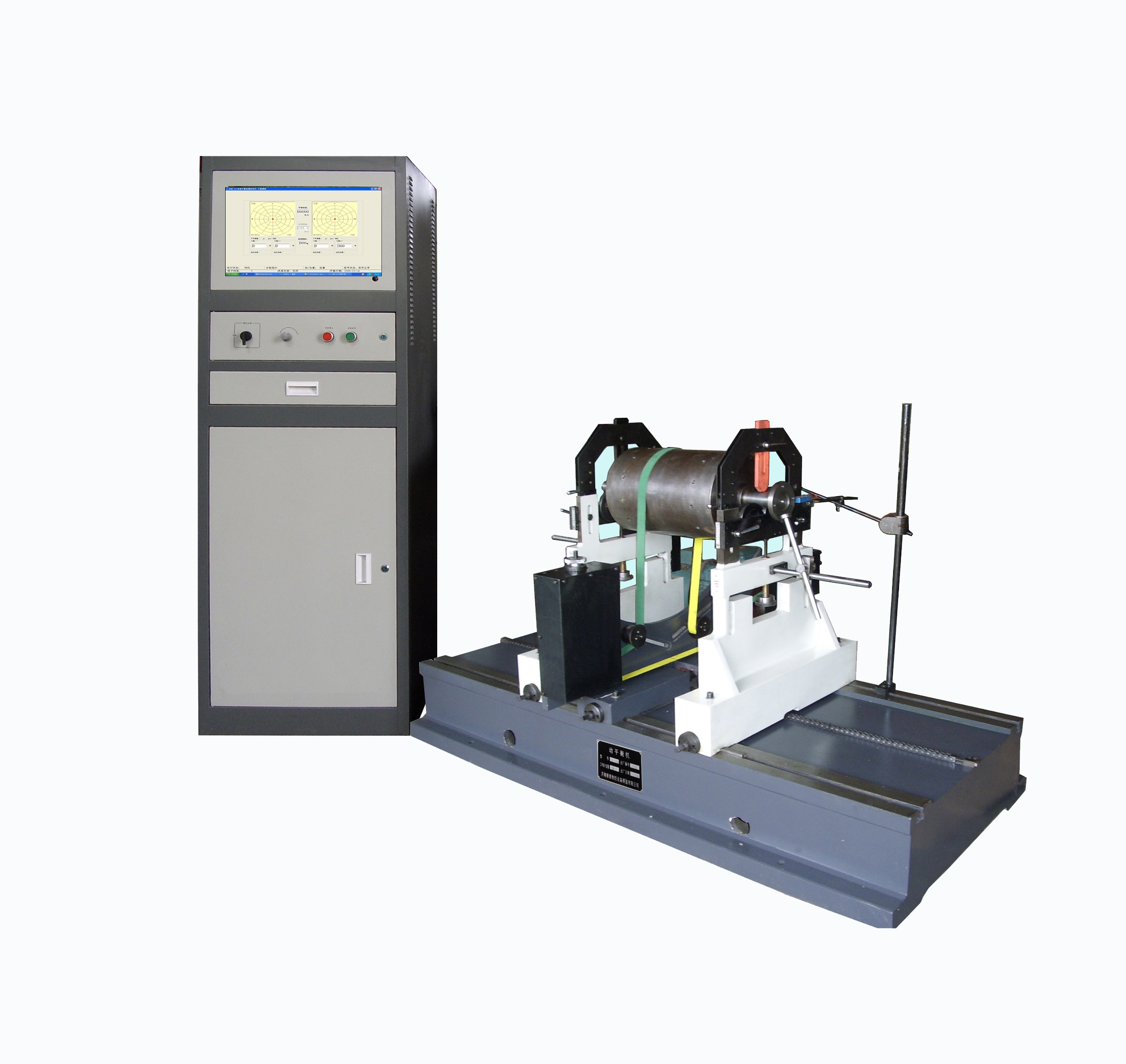

YYQ-300A Belt Drive Dynamic Balancing Machine For Abrasive Industry Grinding Wheel Balance Machine

1. Product features:
The universal hard bearing dynamic balancing machine is produced strictly in accordance with GB/T 4 2 0 1- 2006. It adopts semi-rigid bearing, belt drive, screen display structure, industrial control computer for data processing, and 19-inch LCD screen to display: unbalance amount and phase. angle and real-time rotational speed, widely used in papermaking machinery, textile machinery, agricultural machinery, electric motors, blowers and other industries; it can be balanced on one side and is suitable for discs and rotors with an extended center of gravity.
2. Main technical indicators:
Drive mode:
Circle belt drive, 4kw motor and flat belt
measuring system:
Self-developed special measurement software for dynamic balancing machines, with intuitive display and accurate measurement.

Model: YYQ-300A
Range of workpiece weight (kg): 5-300
Diameter range of the drag zone (mm): Φ 40-450
Max. diameter of workpiece (mm): Φ1200
Distance between two bearing (mm): 150-1500
Bed frame length (mm): 1800
Roller support shaft diameter (mm): Φ 10-90
Balancing speed (r/min): 300-1500 stepless speed regulation when the diameter of the drag is 230mm
Minimum residual imbalance: ≤0.5gmm/kg
Imbalance reduction rate (%): ≥90%
Motor power: 4Kw
Speed mode: Frequency speed regulation
Drive mode: Belt Drive
Work voltage: AC 3 phase 380V 50/60Hz

*Test data from Beacon laboratory
