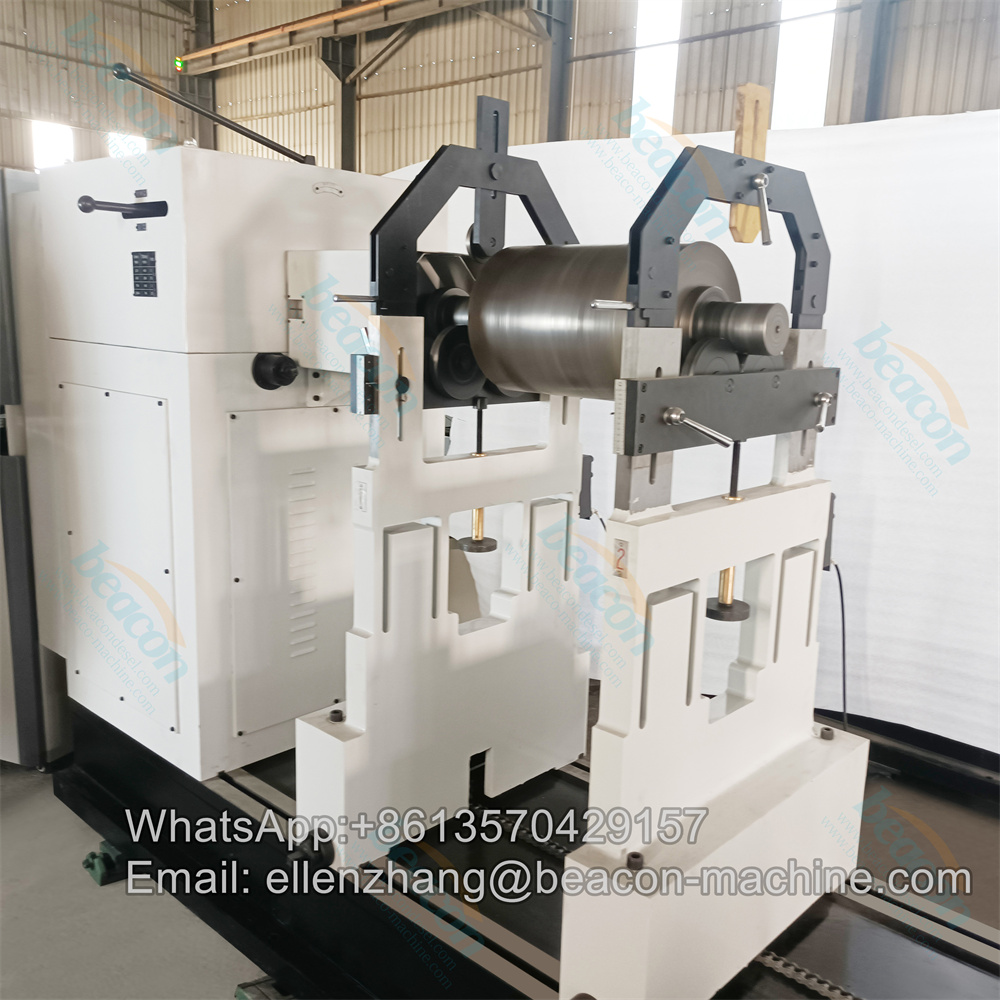

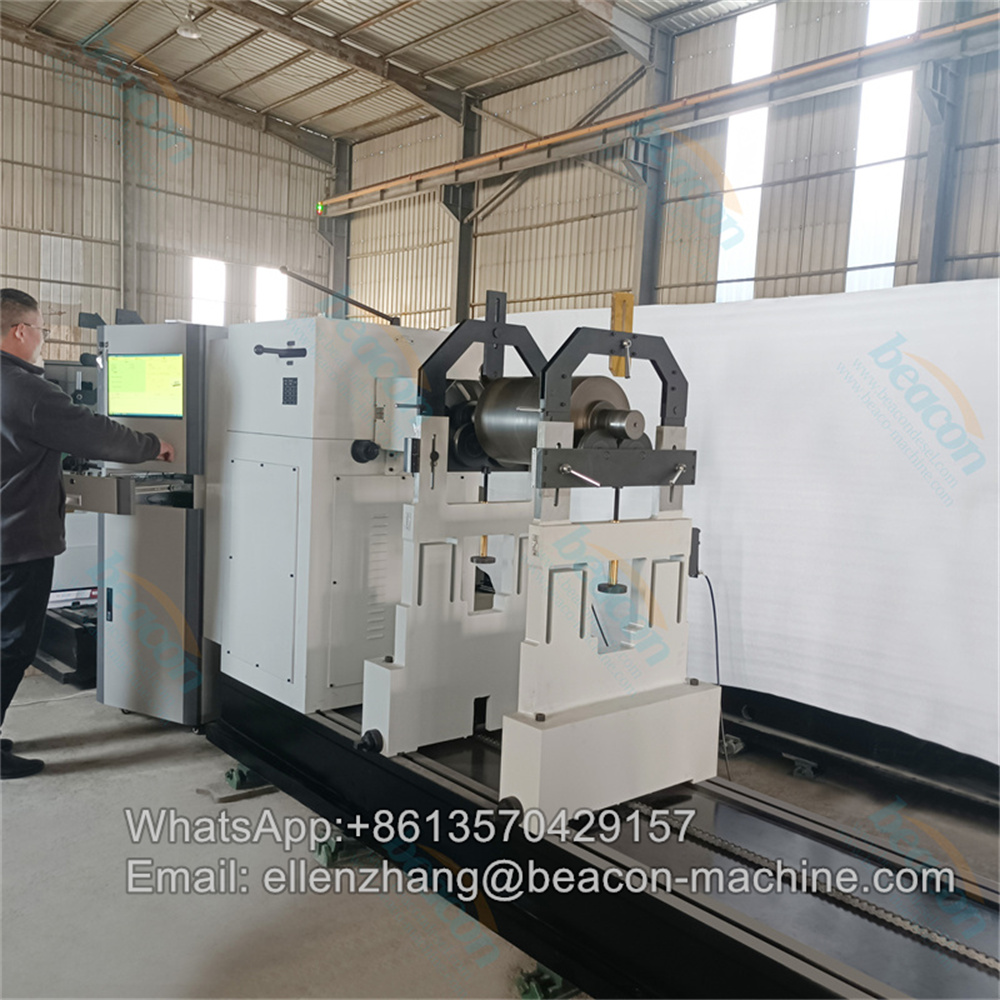

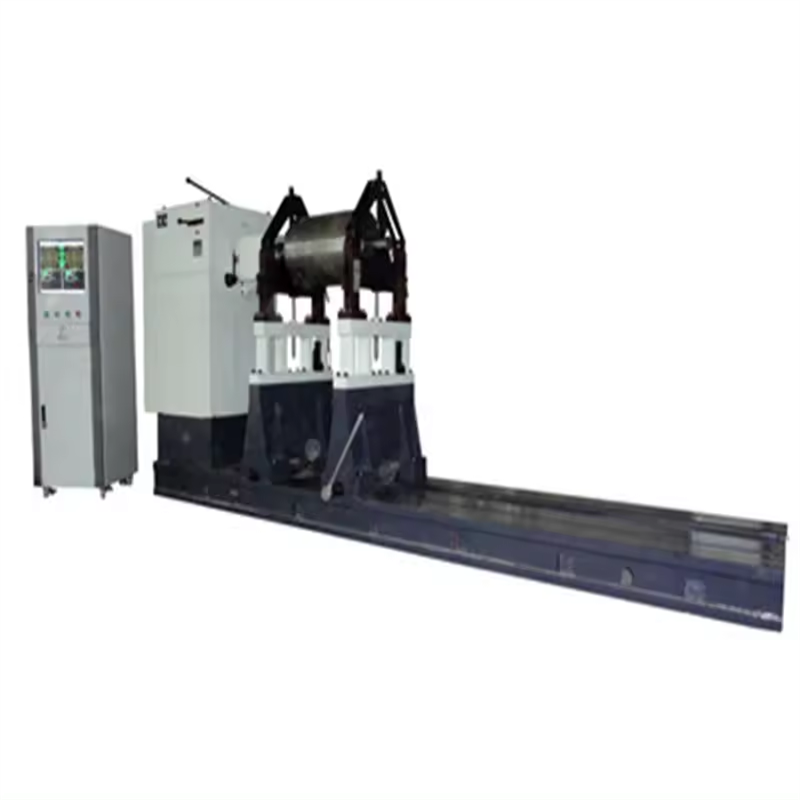

YYW-6000A Universal joint Dynamic balancing machine

The YYW-6000A is a versatile hard-bearing horizontal dynamic balancing machine designed for

a wide range of applications in various manufacturing industries such as electric motors, rolling mills,

crushers, and fans.

• Workpiece Weight Range: It is designed to handle workpieces with weights from 200 kg to 6000 kg.39
• Maximum Workpiece Diameter: The machine can accommodate workpieces with a maximum diameter of up to φ2400 mm.39
• Distance Between Supports: The range of the distance between the supports is 300-2960 mm.39
• Bearing Journal Range: It supports workpieces with a journal diameter range of φ40-180 mm and φ180-300 mm.39
• Balancing Speed: The machine offers multiple speed options, including 253, 435, 708, and 1140 revolutions per minute (r/min). It also has a start measurement speed of 80 r/min.39
• Residual Unbalance: The achievable residual unbalance is ≤1gmm/kg.39
• Unbalance Reduction Rate: The unbalance reduction rate is ≥90%.39
• Motor Power: The machine is equipped with a 22Kw motor.39
• Speed Control: It features a speed control system combining four mechanical gears with gear shifting and internal frequency conversion.39
• Torque of Universal Joint: The universal joint can handle a torque of 300Nm.39
• Working Voltage: The device operates on a three-phase four-wire AC 380V, 50/60Hz power supply.39
