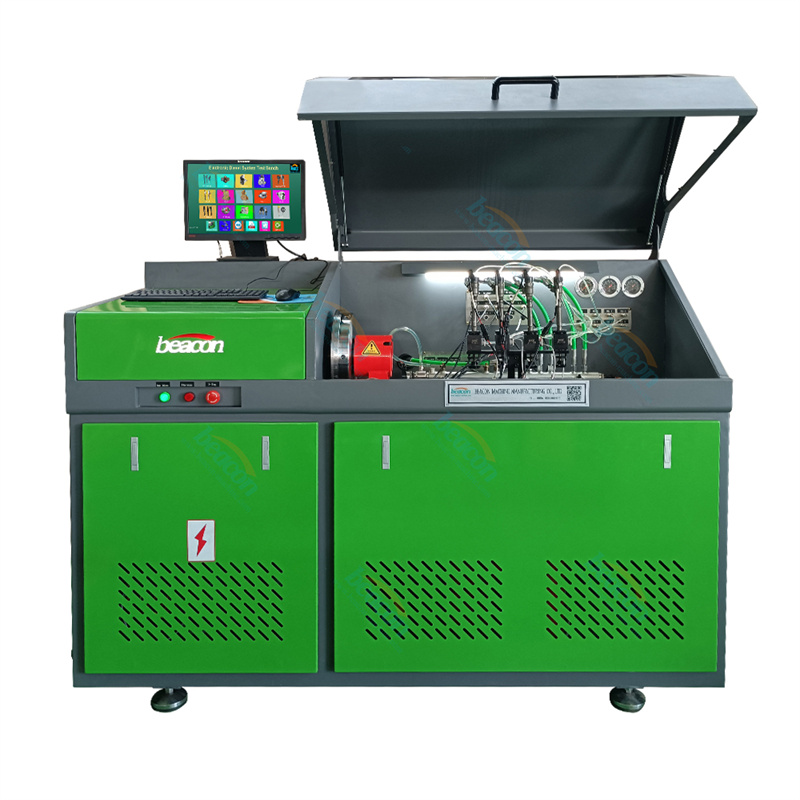

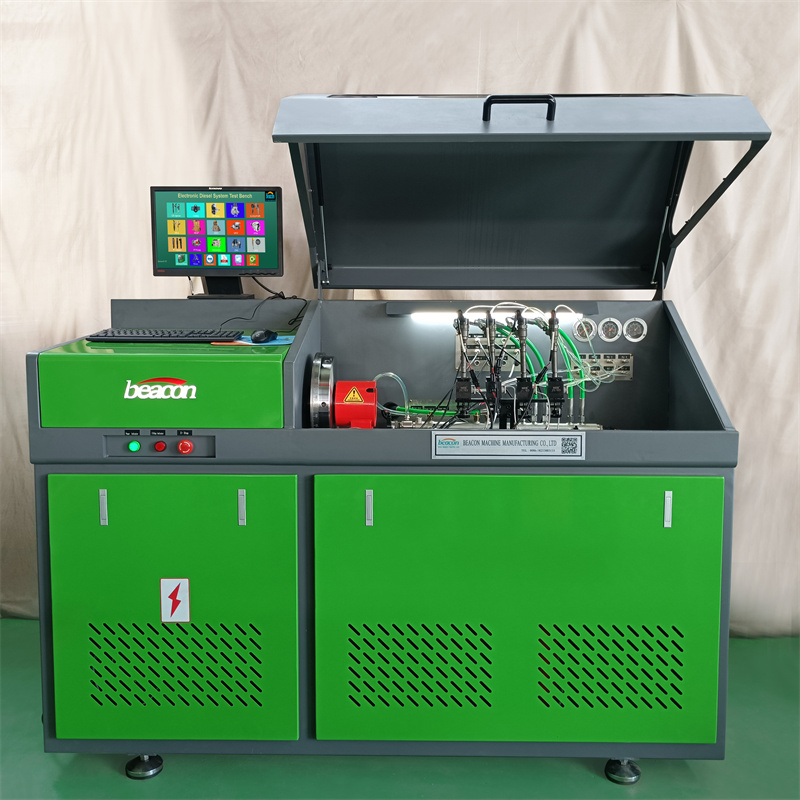

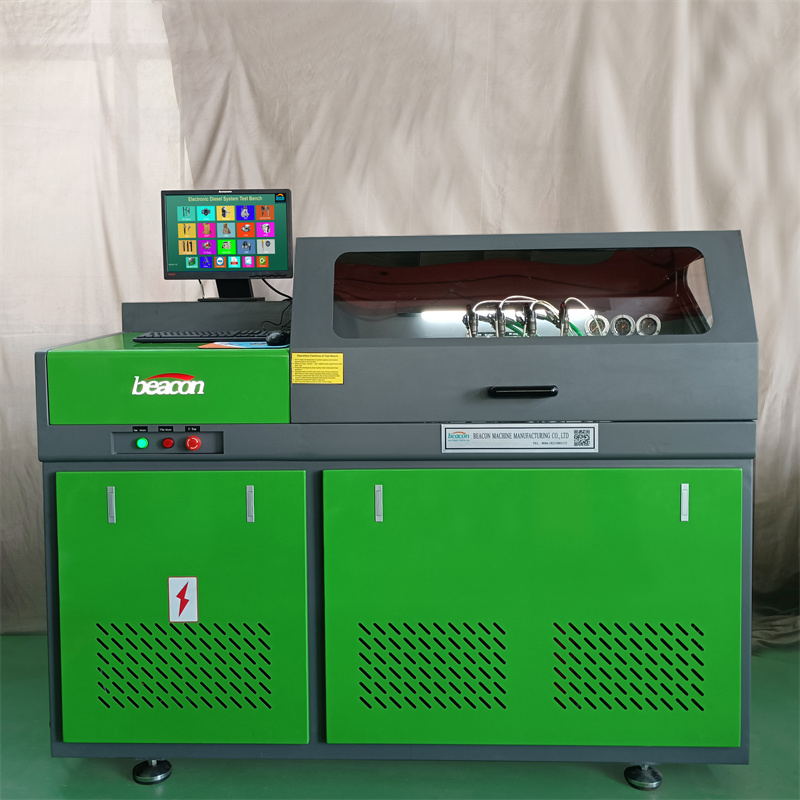

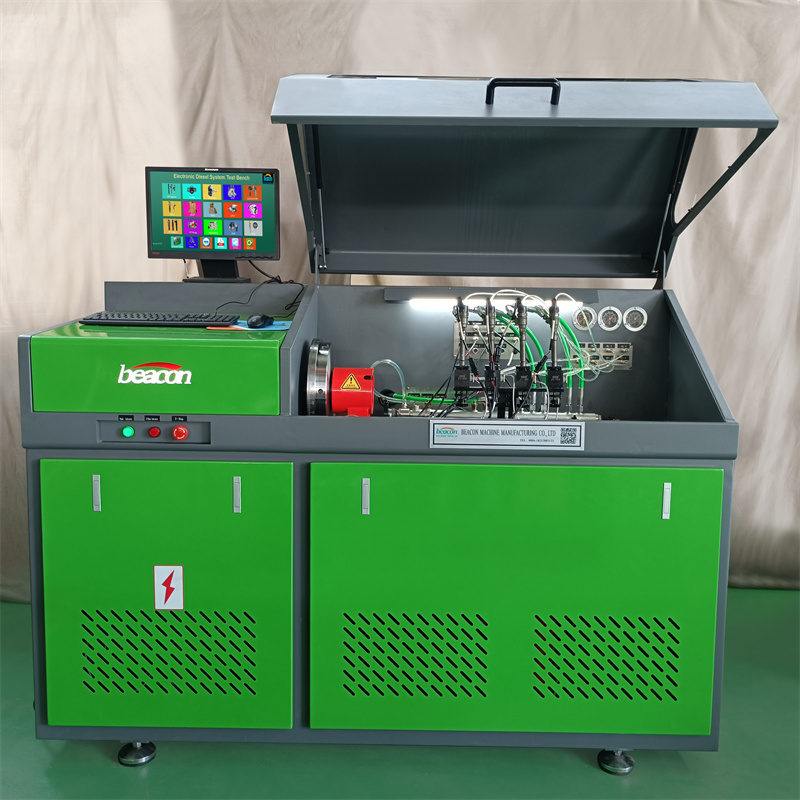

Beacon Machine CR708L Common Rail Test Bench High Pressure Diesel Fuel Common Rail Electronic Injector Pump Tester Crs708

Common rail diesel injector pump test bench CR708L can test 4 injectors at the same time common rail injection system

Introduction

CR708L common rail injector test bench is our latest independent researched special device to test the performance of common rail pump and injector . it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing.It guarantees a high level of reproductivity of the measured valuse.

parameter

Main motor speed: 0-4000 r / min can be adjustable
Motor power: 11KW, 15KW, 18.5KW optional
Fuel Injector open 12V, 80V, 150V Control accuracy:
voltage Control range: phase adjustment
Injector opening 0-1000HZ Control accuracy: 1HZ
frequency Control: 0-65535us
Fuel Injector Hold Time Control: 0-1000 times
Delivery Oil Count Control accuracy:1 times
Fuel pressure control 0-2400bar
Control accuracy: 1bar
Electronic power: 380v /220v 3 phase 220v single phase
Product Size: 1.9*0.78*1.56M
Weight: 770KG(Contains cam box)
*Test data from Beacon laboratory

product video

Beacon Machine CR708L Common Rail Test Bench High Pressure Diesel Fuel Common Rail Electronic Injector Pump Tester Crs708

	CR708L common rail injector test bench is our latest independent researched special device to test the performance of common rail pump and injector . it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing.It guarantees a high level of reproductivity of the measured valuse.



Main Features：
1、 Basic model 11kw 380v 3-phase
2、 Test common rail and piezoelectric injectors

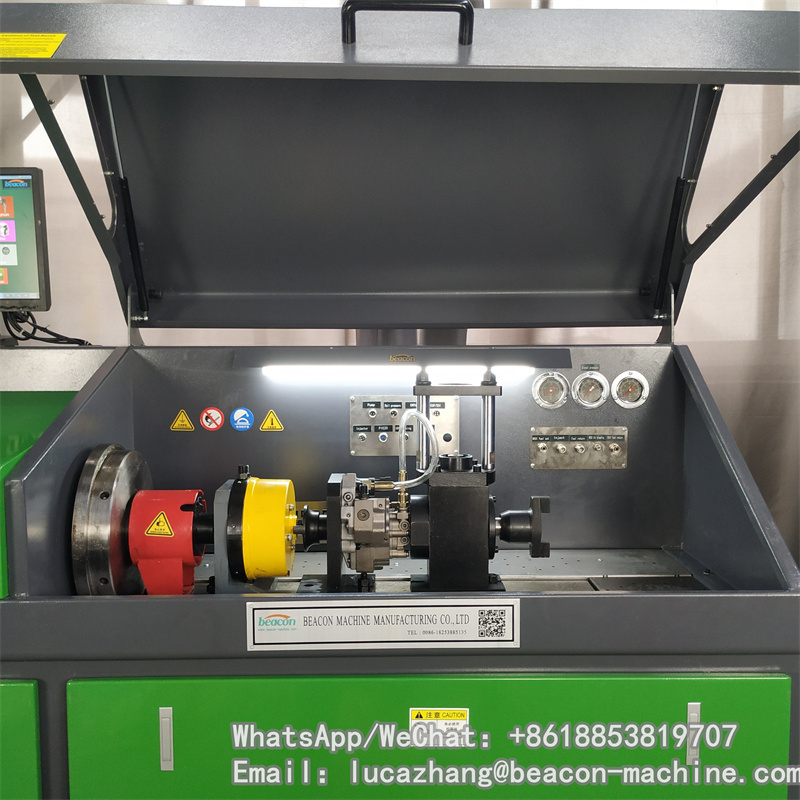

3、 Test the common rail pump
4、 Denso HP0 pump function
5、 Delphi Bosch Denso Siemens injector code

Optional function：
1、 EUI EUP (10 adapters)
2 、EUI EUP (19 adapters)
3、 EUI EUP with gear scale cam box
4、 HEUI (single oil circuit, split holder)
5、 HEUI (oil + diesel dual oil circuit, conjoined gripper)
6 、HEUI 3412 ISUZU function
7、 FORD6.0 Injector Carter 3408
8、 Measure six at the same time (without additional flow sensor)
9 、Measure four at the same time (without additional flow sensor)
10 、Measure two at the same time (without additional flow sensor)
11 、Simultaneous measurement of six (additional flow sensor)
12 、Simultaneous measurement of four (additional flow sensor)
13、 Simultaneous measurement of two (additional flow sensor)
14 、Delphi, Denso, Bosch, Siemens coding
