Introduction

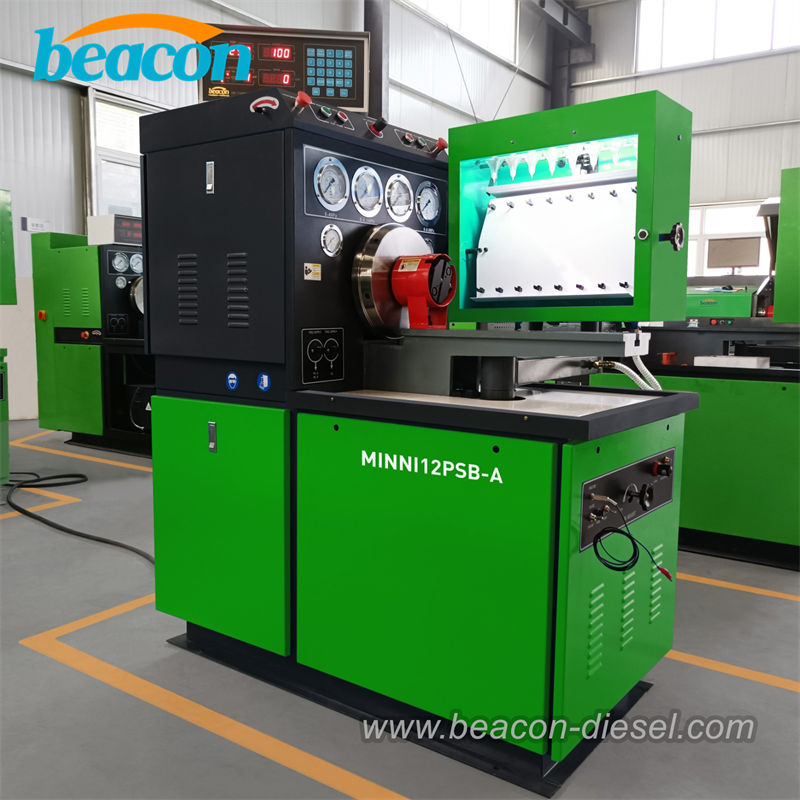

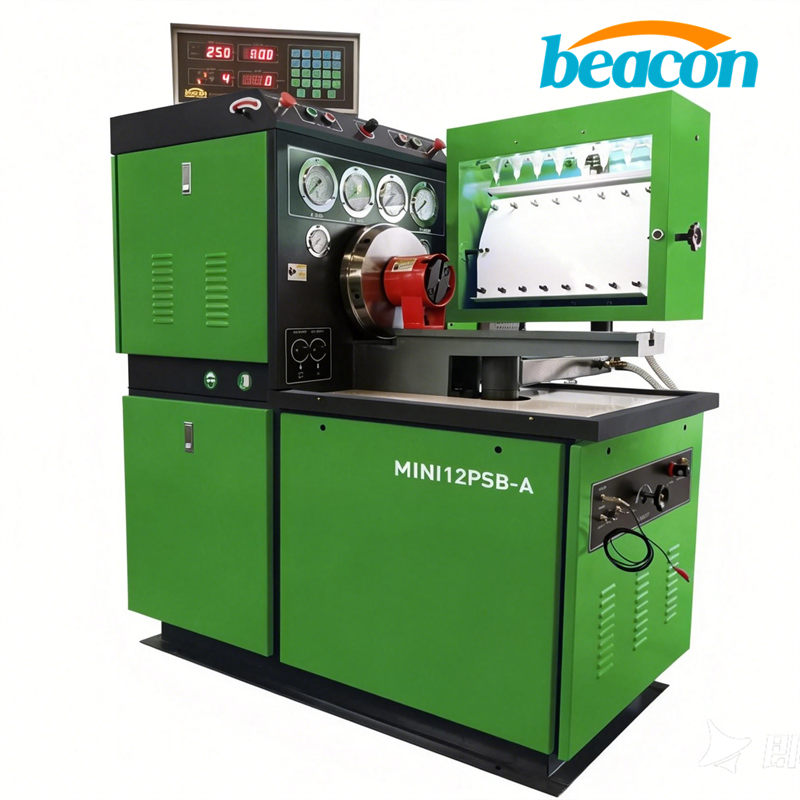

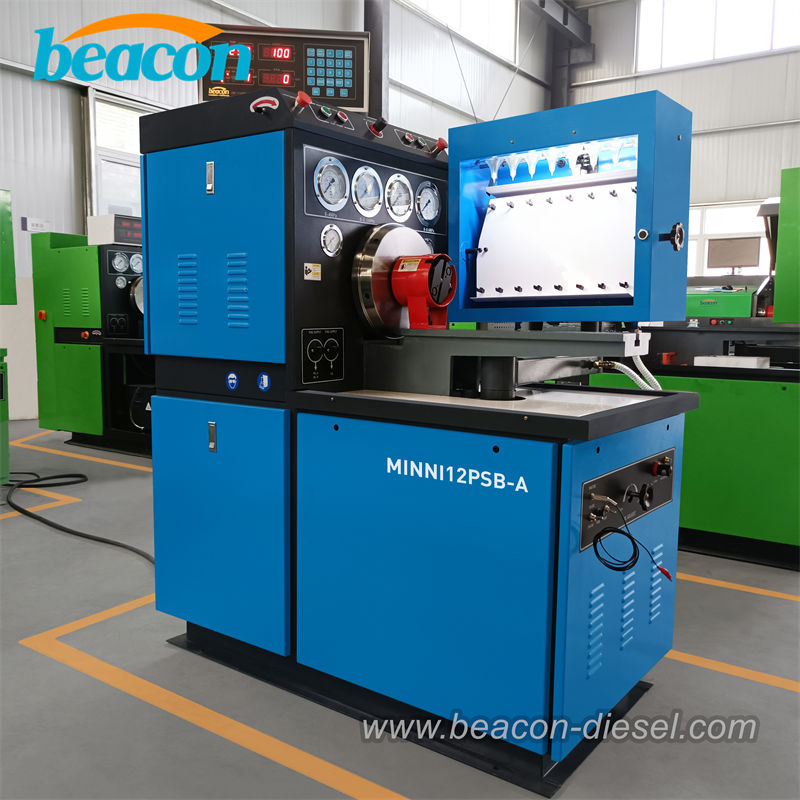

The Beacon MINI12PSB-A is a compact yet powerful diesel injection pump test bench designed to meet the rigorous demands of modern diesel repair workshops.

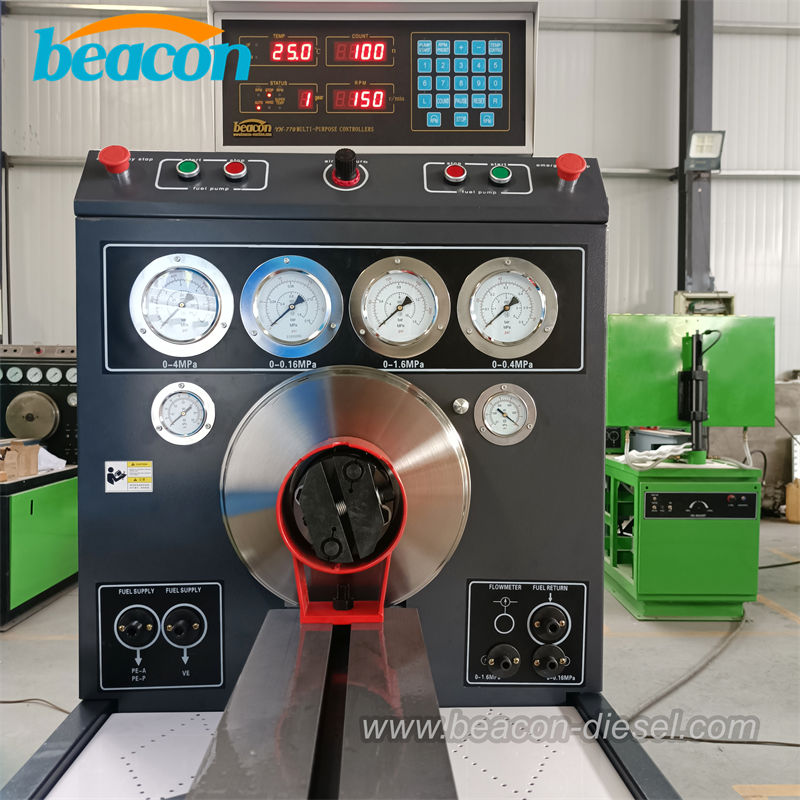

Distinct from the standard MINI12PSB model, the MINI12PSB-A features an upgraded inclined control panel, offering superior ergonomics that reduce operator fatigue during extended calibration processes and provide a clearer viewing angle of data.

This machine is an essential tool for technicians, enabling the precise measurement of fuel delivery, inspection of mechanical governors, and testing of solenoid valves for distributor pumps (including VE types).

By providing accurate calibration for a wide range of pumps (A, B, P, Z, VE, etc.), it helps workshops ensure their customers' engines run with optimal fuel efficiency and reduced emissions. Its compact footprint (145×101×158 cm) makes it an ideal high-performance solution for shops with limited space.

parameter

Parameter	Specification
Model	MINI12PSB-A
Voltage	380/220 V, 3-phase / 1-phase
Output Power	7.5 / 11 KW
Motor Type	AC Motor
Speed Range	0~4000 r/min
Shaft Height	125 mm
Number of Cylinders	8
Stroke Count	50~9999
Feed Pump Motor	1 KW
Fuel Tank Capacity	40 L

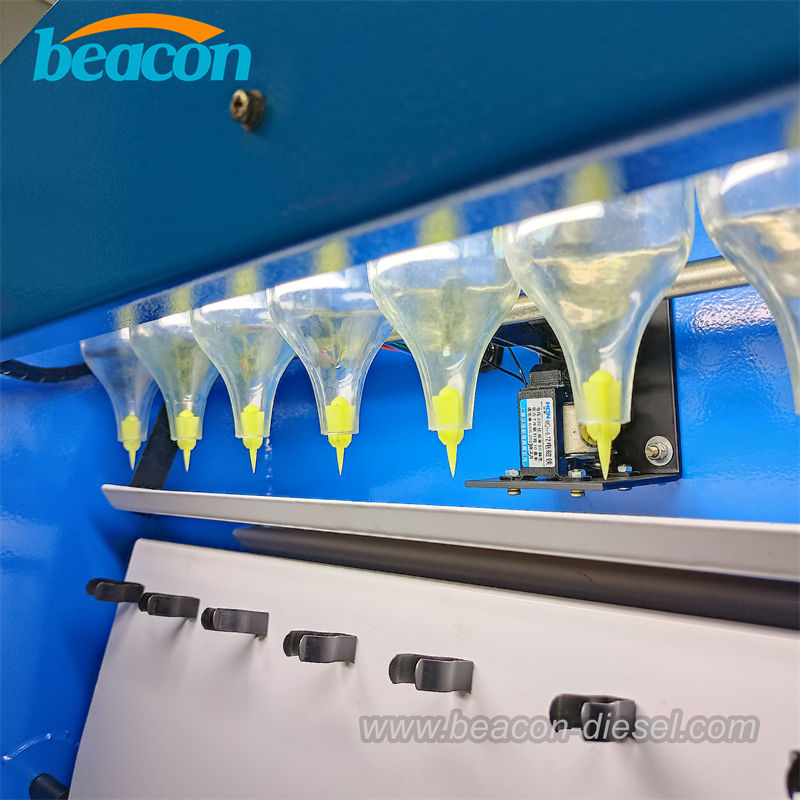

Graduated Cylinders	Small: 45 mL / Large: 150 mL
DC Power Supply	12 / 24 V
Test Oil Supply Pressure	>0.4 MPa (High/Low)
VE Pump Pressure Gauge	0~1.6 MPa
Dimensions	145 × 101 × 158 cm
Gross Weight	650 kg
