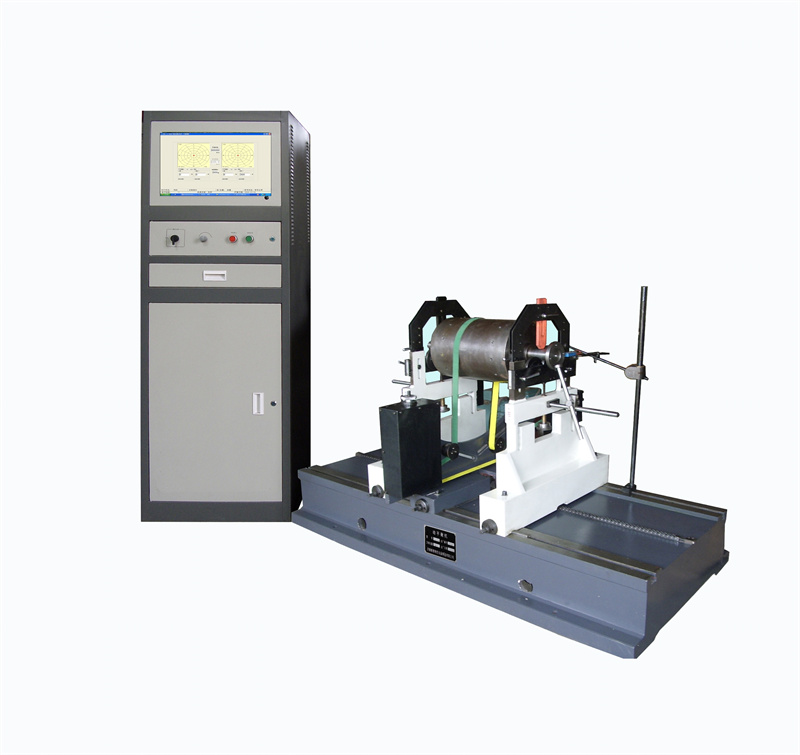

Rubber Roller Dynamic Balancing Machine YYQ-300S Rotor Turbo Armature Camshaft Grinding Wheel Balance Machine
Rubber Roller Dynamic Balancing Machine YYQ-300S Rotor Turbo Armature Camshaft Grinding Wheel Balance Machine
Quick OrderIntroduction
1. Product features:
The universal hard bearing dynamic balancing machine is produced strictly in accordance with GB/T 4 2 0 1- 2006. It adopts semi-rigid bearing, belt drive, screen display structure, industrial control computer for data processing, and 19-inch LCD screen to display: unbalance amount and phase. angle and real-time rotational speed, widely used in papermaking machinery, textile machinery, agricultural machinery, electric motors, blowers and other industries; it can be balanced on one side and is suitable for discs and rotors with an extended center of gravity.
2. Main technical indicators:
Drive mode:
Circle belt drive, 4kw motor and flat belt
measuring system:
Self-developed special measurement software for dynamic balancing machines, with intuitive display and accurate measurement.
parameter
Technical indicators:
1) Workpiece mass range (KG): 5-300kg
2) Maximum rotation diameter of workpiece mm φ1200
3) Maximum diameter of the loop belt dragging point mm φ450
4) Maximum distance between the centers of the two swing frames (mm): 1500
5) Bed length (mm): 1800mm
6) Shaft diameter at support (mm): φ20-φ90 (standard support roller frame)
7) Minimum attainable remaining unbalance (gmm/kg): ≤0.5
8) Balance reduction rate (%): ≥90
9 Balance speed (r/min): 200-1500
10) Motor power (KW): 4kw
11) Transmission mode: circle belt drag
12) Working environment: Temperature -5℃...45℃; Humidity 0-85%
*Test data from Beacon laboratory
