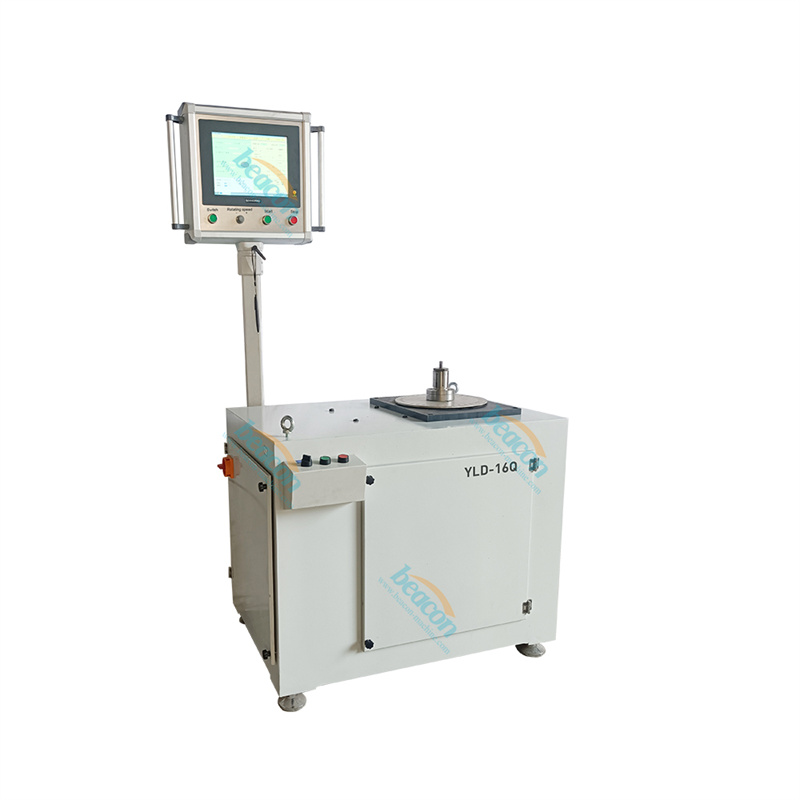

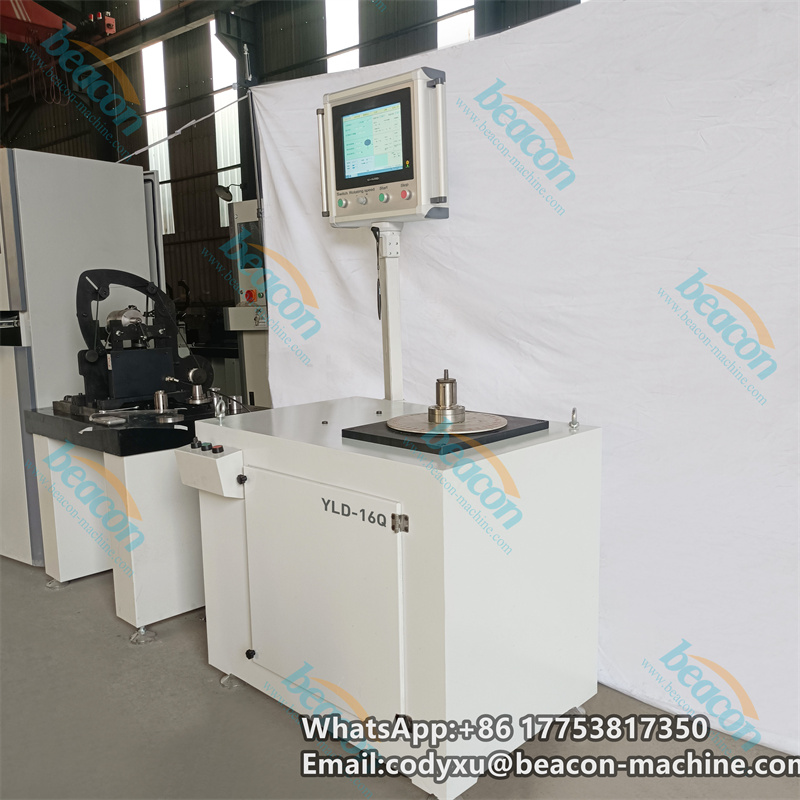

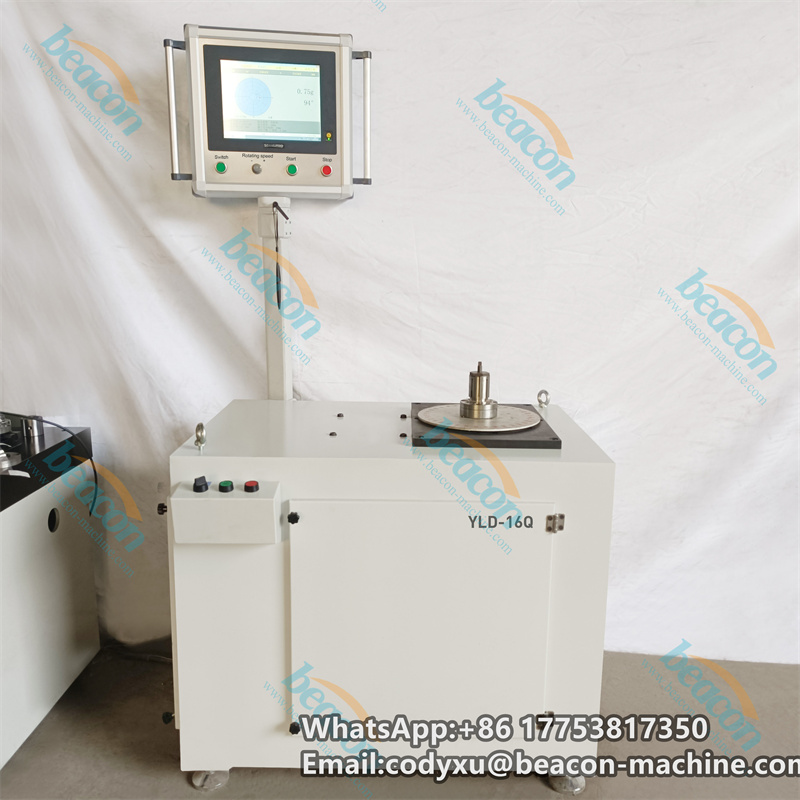

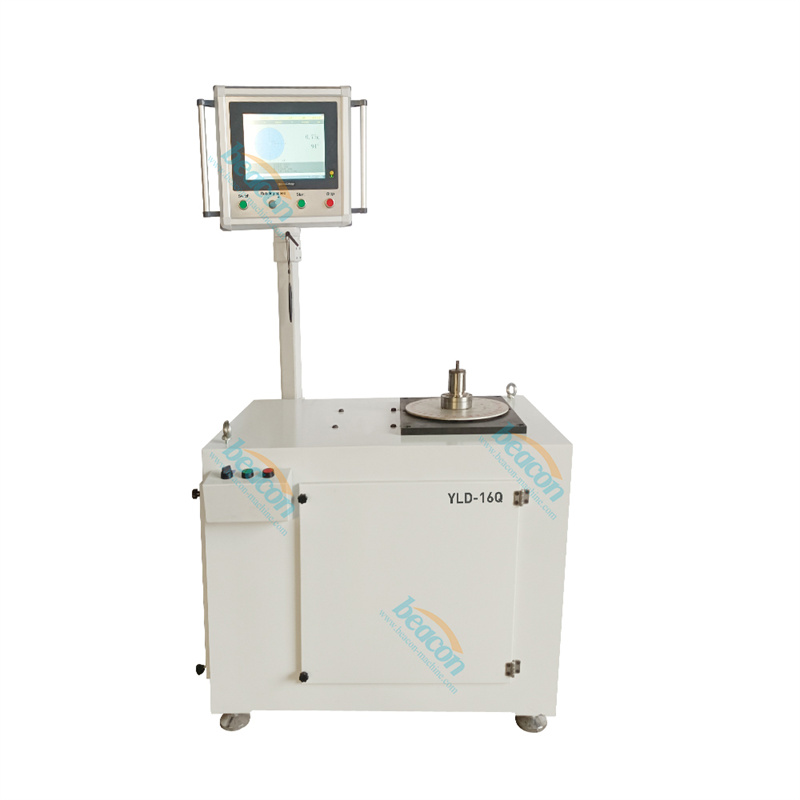

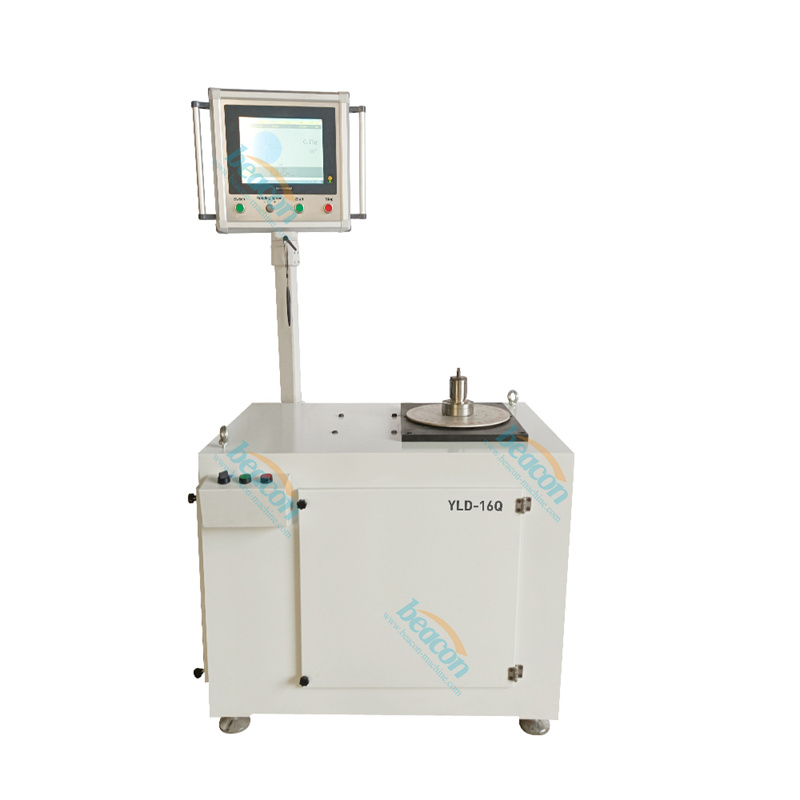

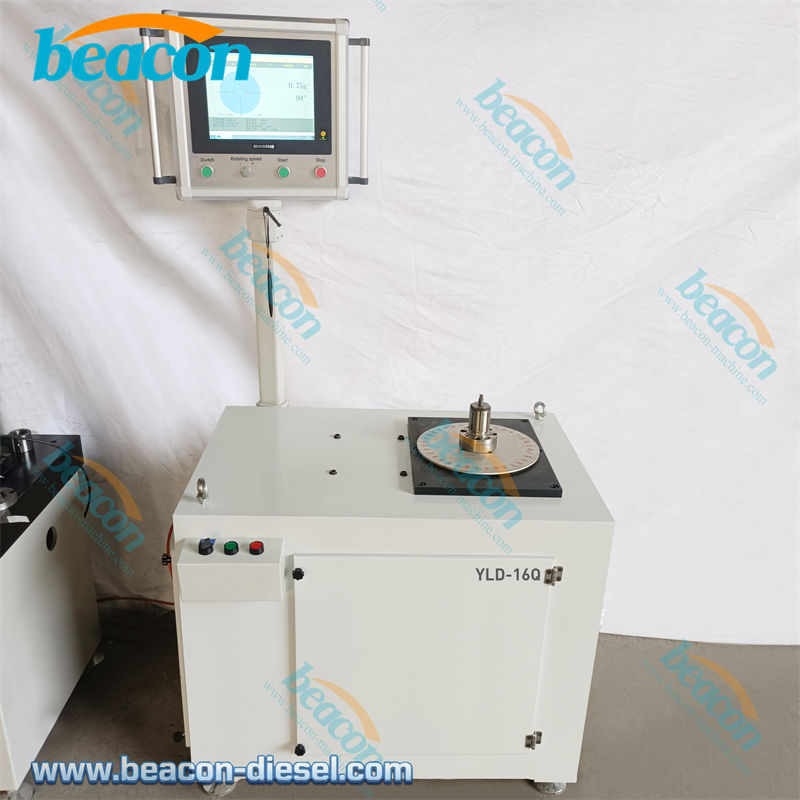

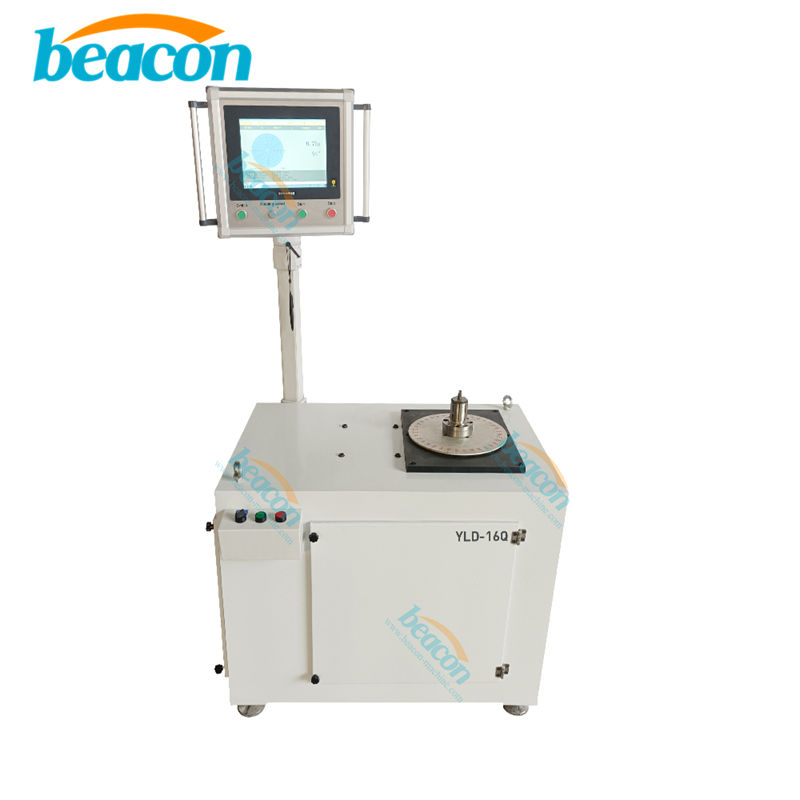

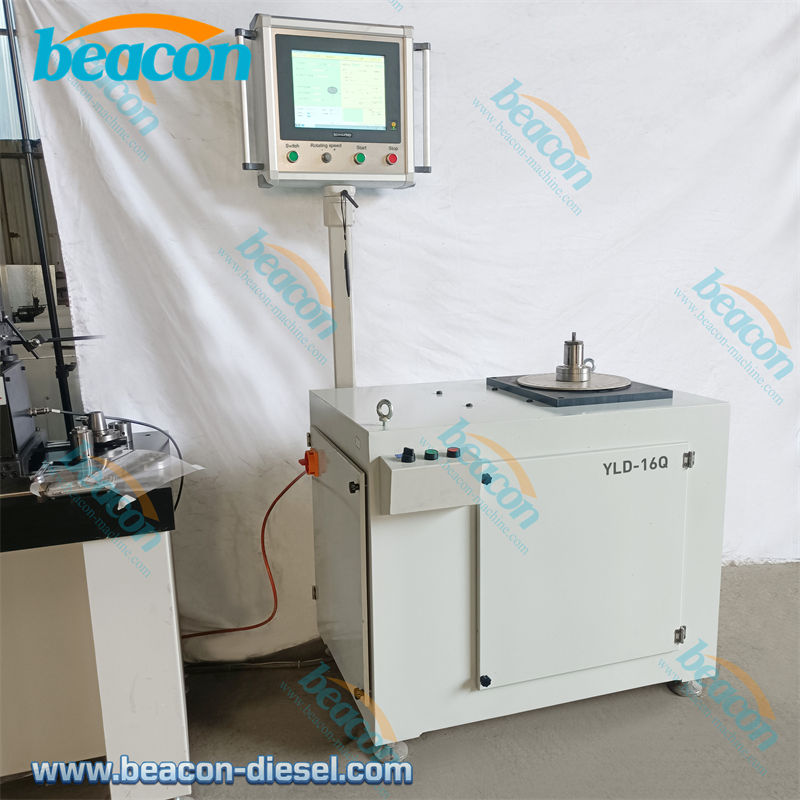

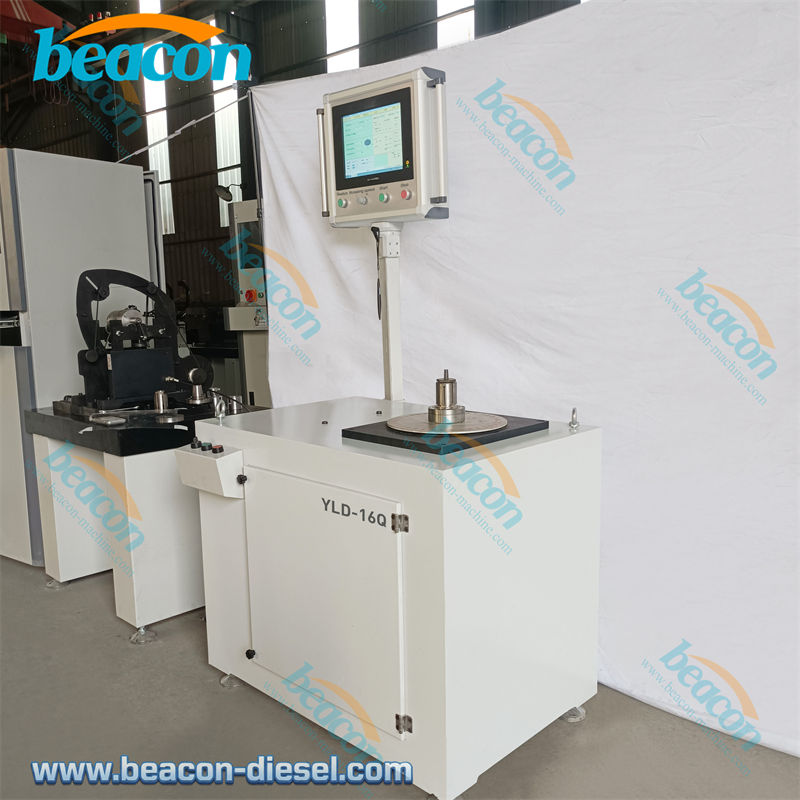

Boat Repairing YLD-16Q Drive Shaft Fan Blade Pump Impeller Vertical Dynamic Balancing Machine

Features:
The universal hard support balance machine produced by our company strictly organizes production in accordance with G B/T 4 2 0 1-1002. The YLD series is a single-sided vertical balance machine. The commonly used model measurement range is within 200 kilograms. Customize a single -sided vertical balance machine within 10,000 kg. This machine is suitable for the dynamic balance verification on a single -sided rotation. The ideal equipment that is verified can be used for a balanced verification just to replace the fixture of the installation workpiece. This series of products is divided into "A" type and "Q" type. The "A" type is the speed adjustment of the inverter, and the manual clamp the workpiece; the "Q" type is the inverter speed adjustment of the air -to -air -to -control the workpiece. Data processing by industrial control computers, the color screen displays unbalanced value, phase angle and real -time speed, and is equipped with high -end dustproof industrial cabinets. The software adopts the GB-20000 general microcomputer balanced measurement system. It runs under Windows, fully automatic program-controlled amplification module, operates all Chinese menu structures, automatic prompts, simple operations, supports massive measurement results and prints (required another printer), system test High accuracy is more advanced and more advanced and the DOS test system is more advanced. We can customize various general -purpose fixtures or special fixtures for customers according to the customer's workpiece, and we can also go to heavy drilling machines to stand on a heavy drilling machine and vacuum device.


Mechanical features:
(1) The welding structure of the dynamic balance machine is welded.
(2) The main axis support is also used as a whole. The double -row bolt is connected to the base and has enhanced reinforcement. Because the stability of the cast iron base and the vertical branch equipment is good.
(3) The main axis adopts 45#carbon structure steel. After forging, quenching, and after fine grinding, the hardness is HRC50 or more, and the axial and radial beating are within 0.02mm. The roller bearing uses P5 -level precision bearing. The original factory is customized to absolutely ensure quality and accuracy.

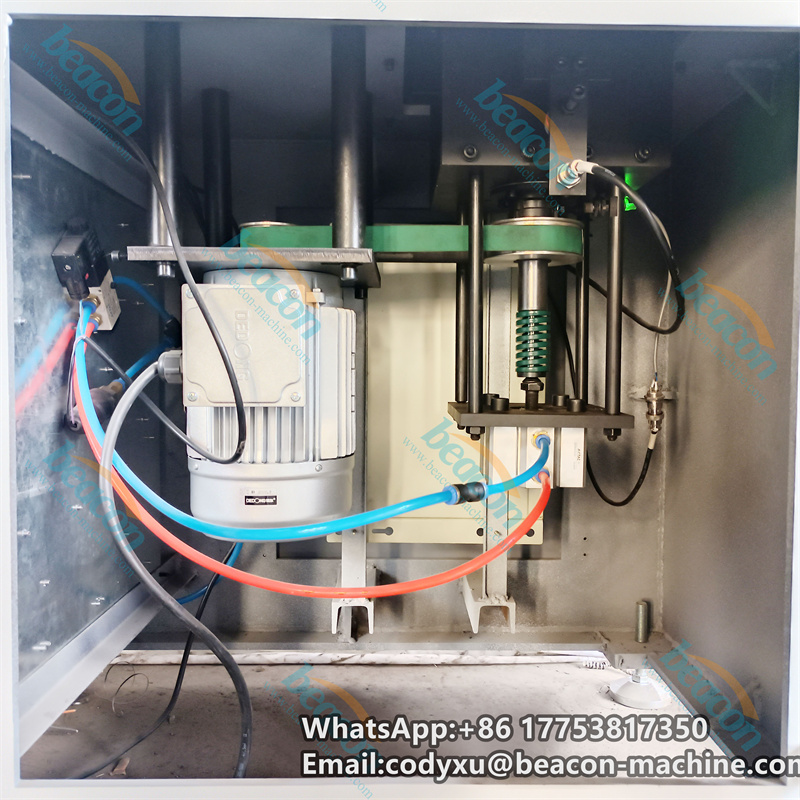

(4) Dynamic transmission adopts multi -wedge belt. It is reliable in running smooth transmission and has a small impact on balanced measurement.

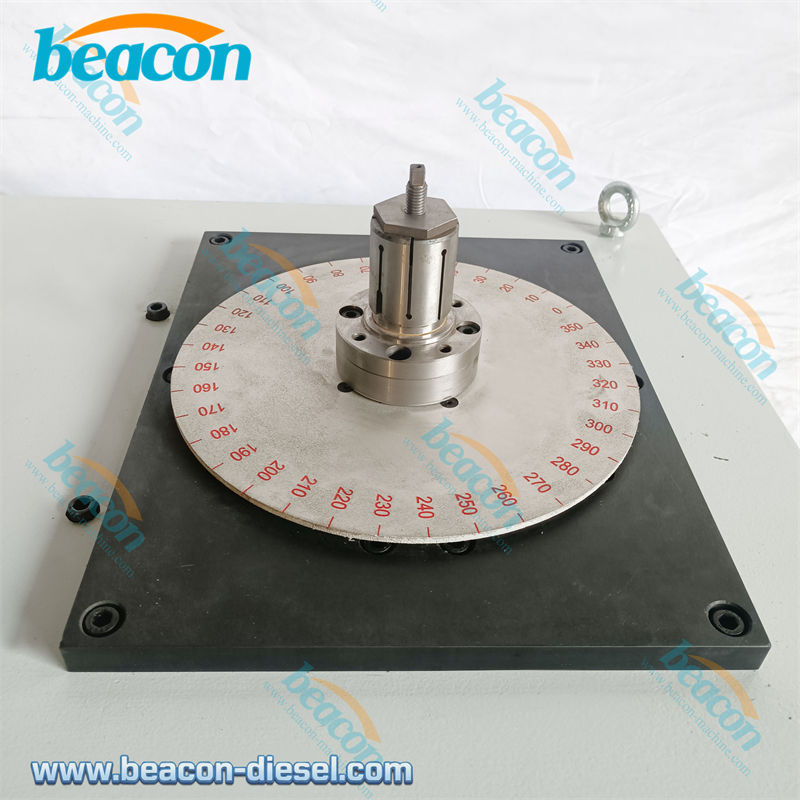

(5) Synchronous rotation scales in the spindle, which facilitates the finding angle.
(6) When the "Q" type is balanced, the main axis adopts a hollow structure. The lower end of the main axis can rotate the cylinder, and the workpiece can be quickly clamped through the tie rod and pneumatic mount (or pneumatic work).

Device model：YLD-16Q
Workers quality range kg：0.5-16
Balancing speed r/min：100-1100
Minimum residual unbalance：≤1gmm/kg
Minimum display unit of unbalance：0.01克
Minimum unit of unbalance angle：1°
Reduction rate of unbalance%：≥90%
Motor power：1.1KW

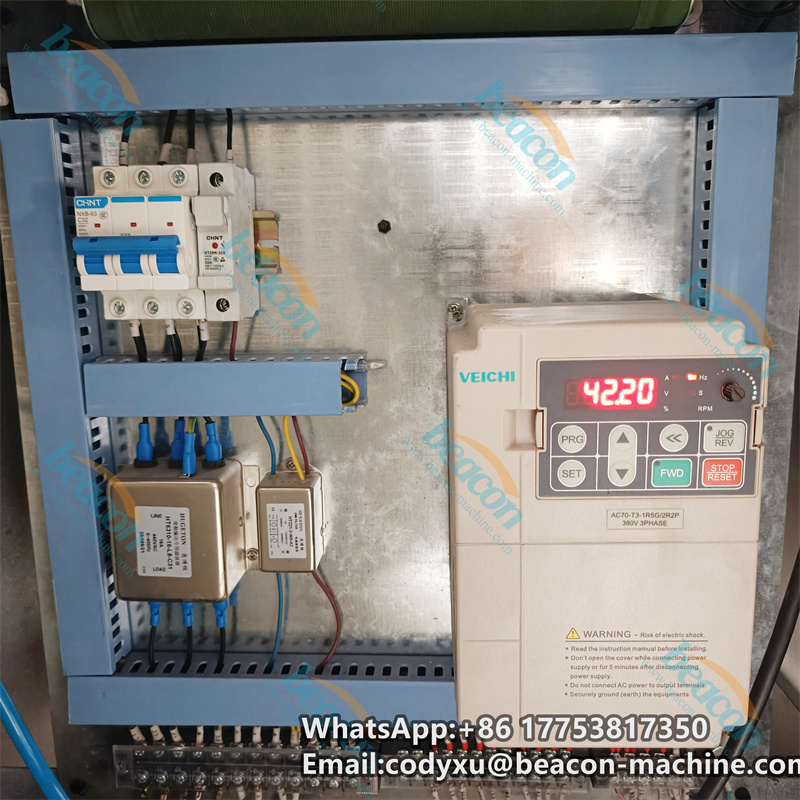

Speed mode：frequency control
transfer method：Multi wedge belt drive
Overall size (length * width * height)：900*600*750

*Test data from Beacon laboratory
