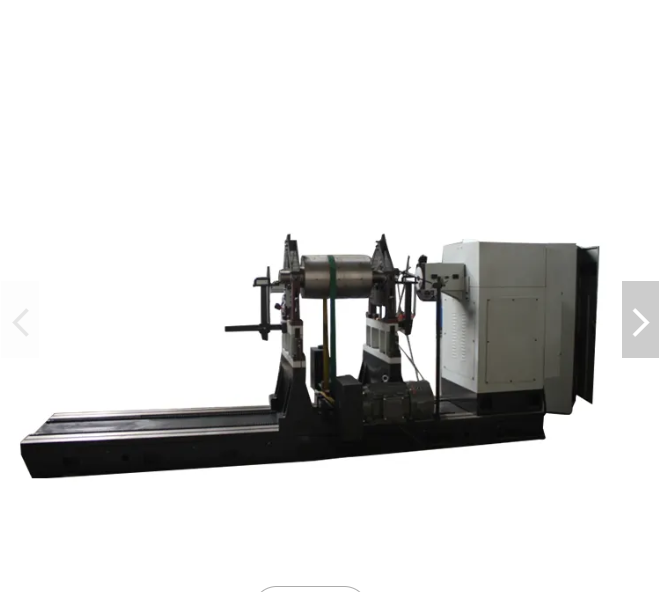

YYH-500A High Precision Cardan Shaft Balancing Equipment Hard Bearing Shaft Balancing Machine

The YYH series is a universal joint and ring belt dual-drive universal hard-supported horizontal double-sided dynamic balancing machine. The equipment model covers a measurement range from a few kilograms to more than 50 tons. It is supported by rollers. The products are strictly in accordance with GB/T 4 2 0 1- 2006 Organization of production. The equipment measurement is processed by the industrial control computer.

Maximum mass of workpiece kg：500

Minimum weight of workpiece kg：40

Maximum diameter of workpiece on bed rail surface mm：φ1500

Minimum distance between two supports mm：60

Maximum distance between two supports mm：1700

Minimum residual unbalance：≤0.5gmm/kg

Unbalance reduction rate%：≥95%

Motor Power：5.5KW

*Test data from Beacon laboratory
