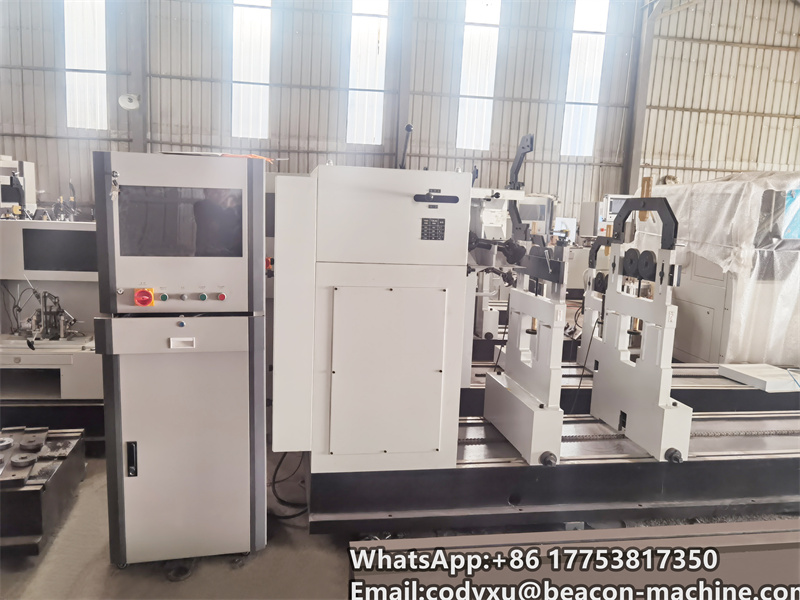

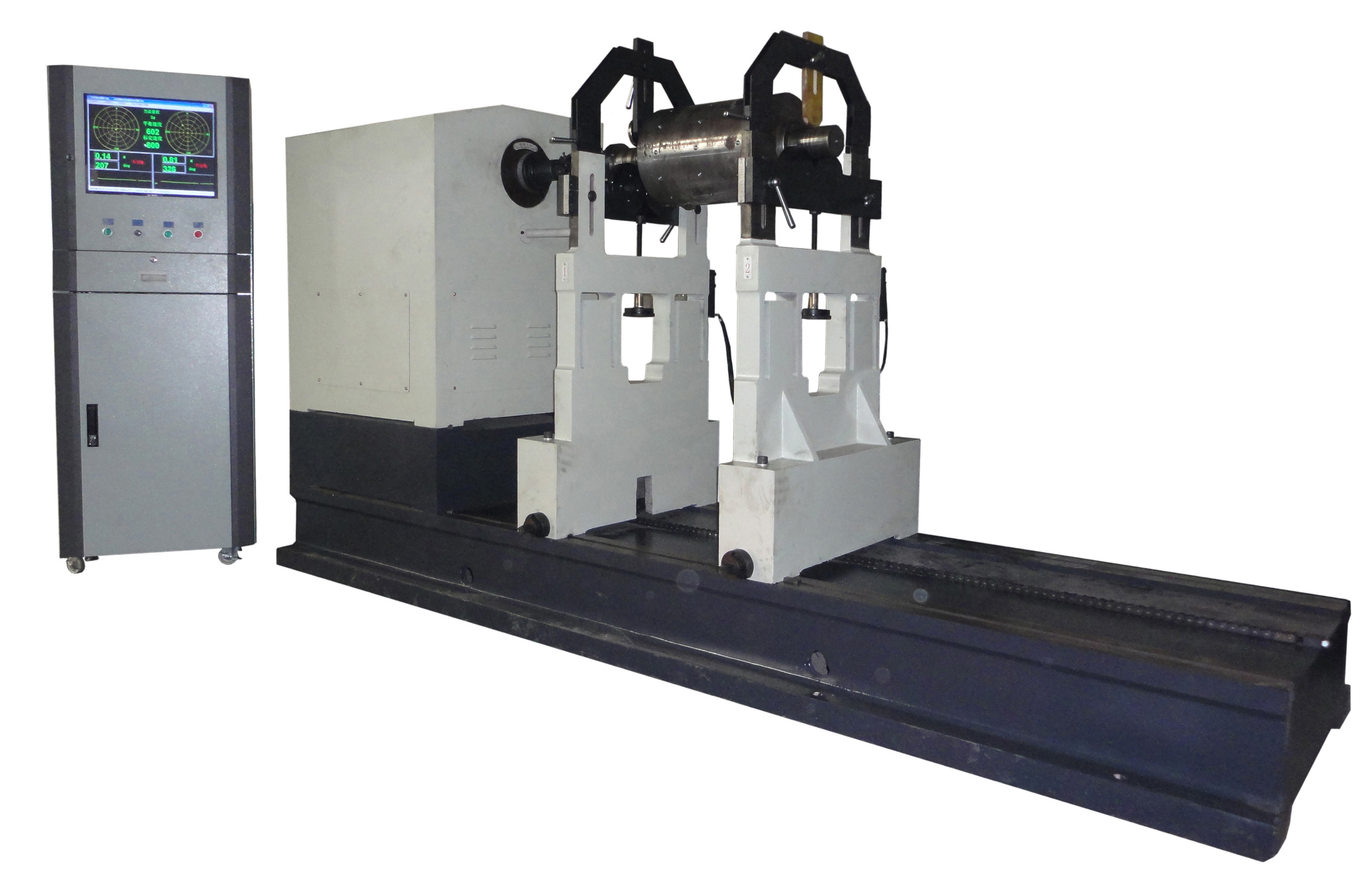

YFW-1600A Dynamic Fan Impeller Balance Test Machine Crankshaft Universal Joint Drive Balancing Machine

This series is designed for fan blower, industry, and other large diameter workpieces production requirements of the hard supporting horizontal special dynamic balance machine, with roller bearing, universal couplings drive, frequency conversion motor speed and frequency converter, the industrial control computer for data processing, color screen real-time display don’t balance phase Angle and value, real-time speed, lathe bed all use whole casting, the stability is good.

1. Balance Angle automatic tracking function

2. Parking automatic positioning function

3. Vector Angle function decomposition

Mass scope of workpiece kg：30-1600

Biggest diameter workpiece mm：2000

Two span of supports mm：300-1600

Trunnion support mm：20-120

Balancing speed r/min：300-1500

Min achievable residual unbalance amount：≤0.5gmm/kg

Unbalance reduction ratio %：≥90%

Motor power：11Kw

mode of speed regulation：Variable frequency speed regulation

*Test data from Beacon laboratory
