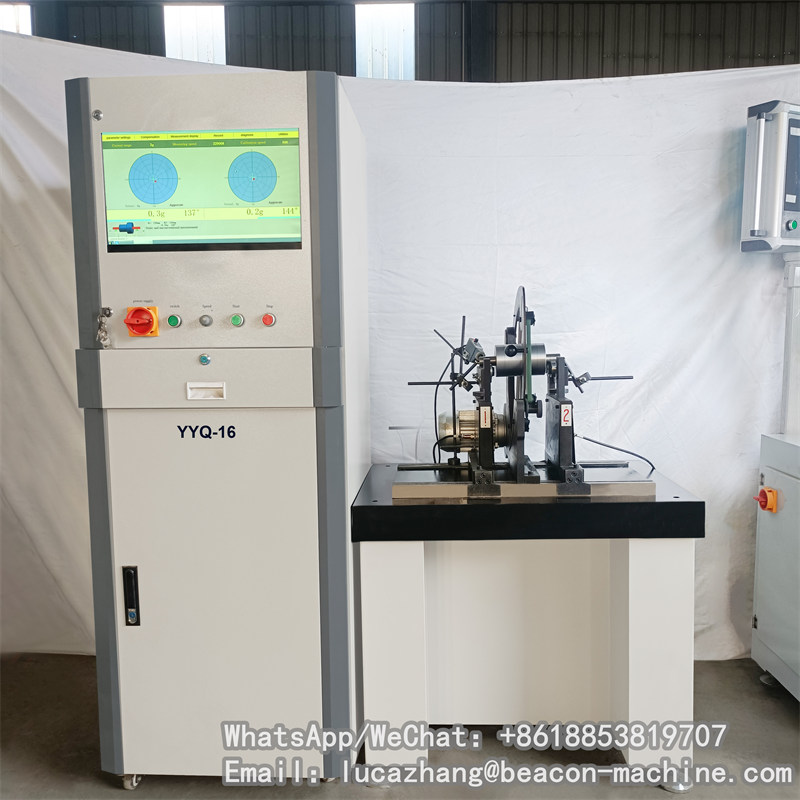

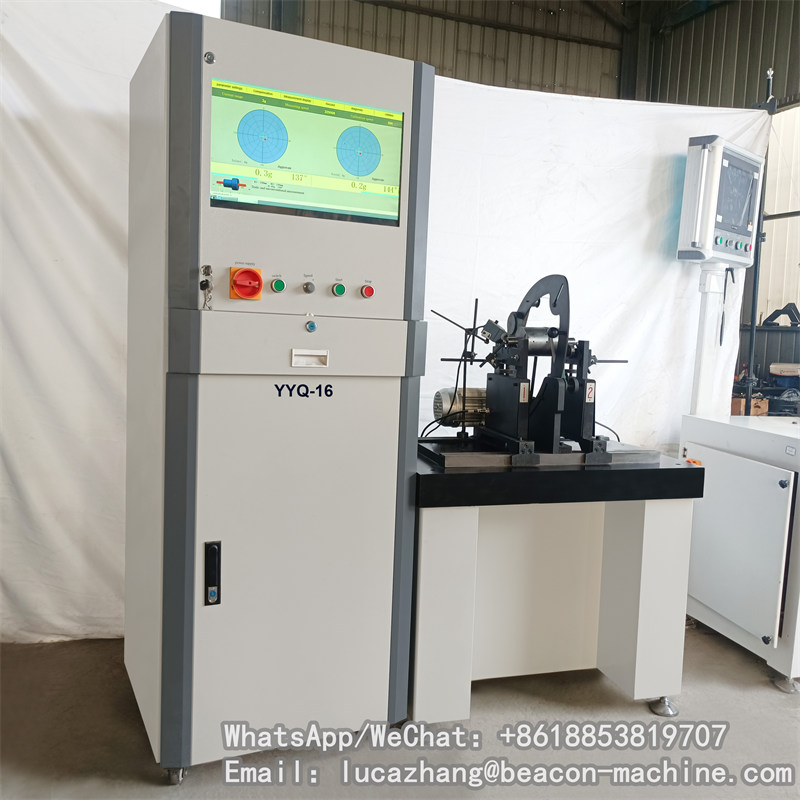

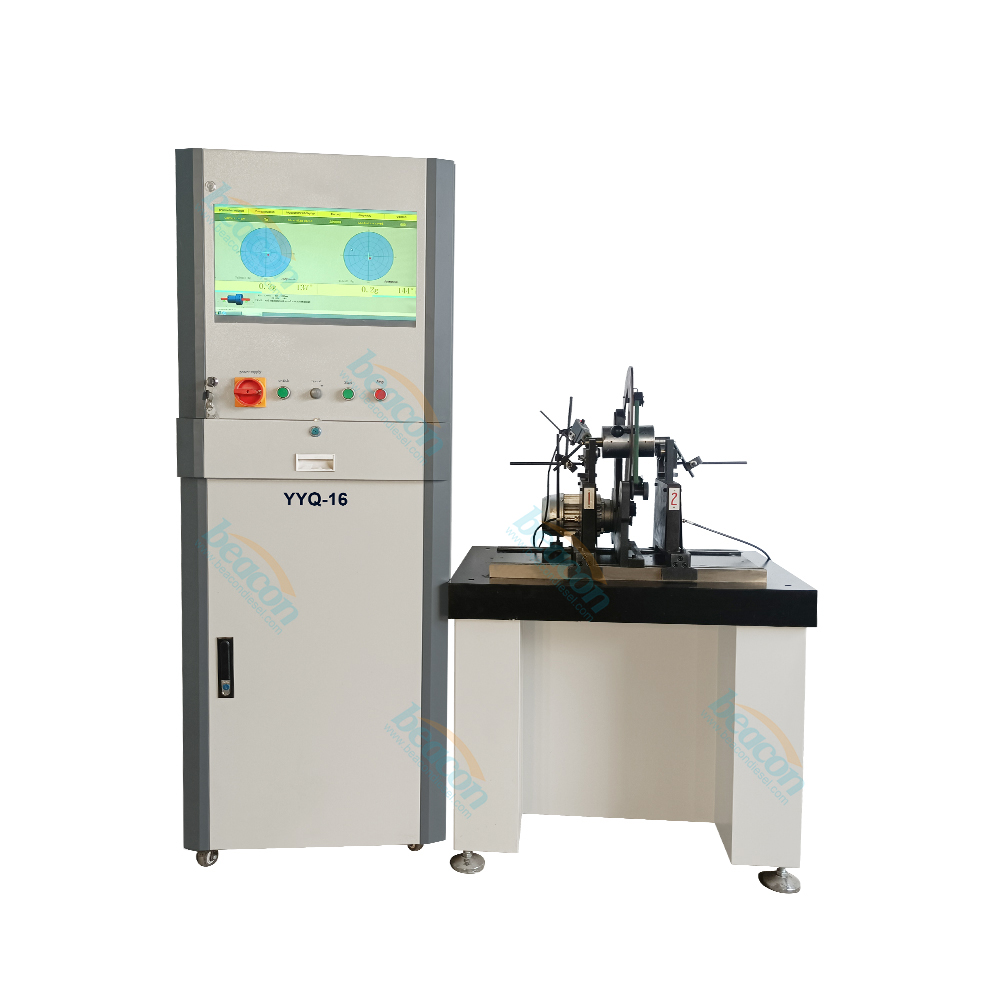

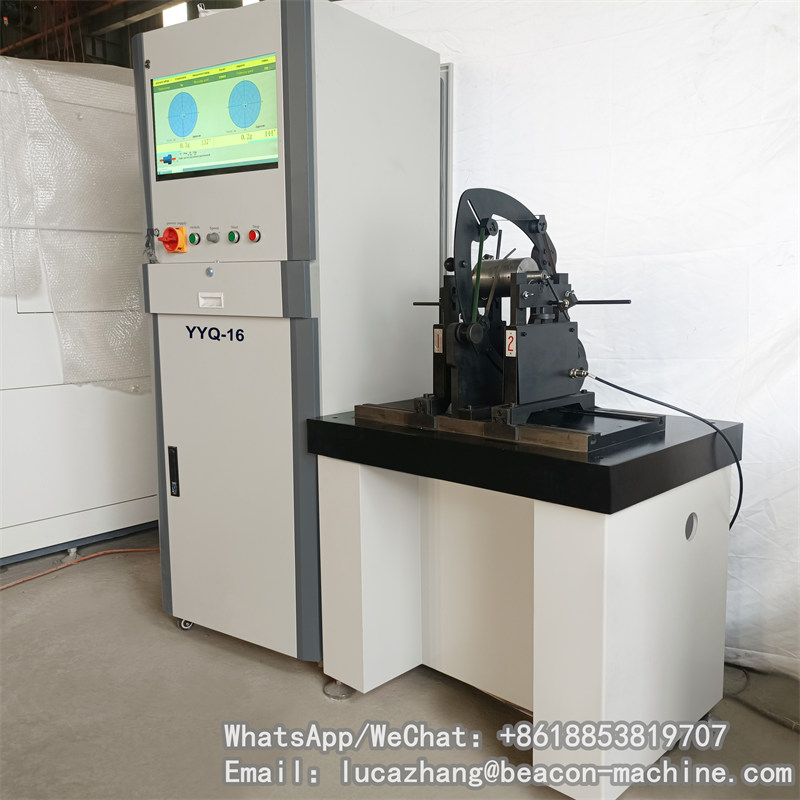

Beacon YYQ-16A Small fan balancing machine fully automatic balancing machine dynamic balancing machine for dynamic testing

Introduction

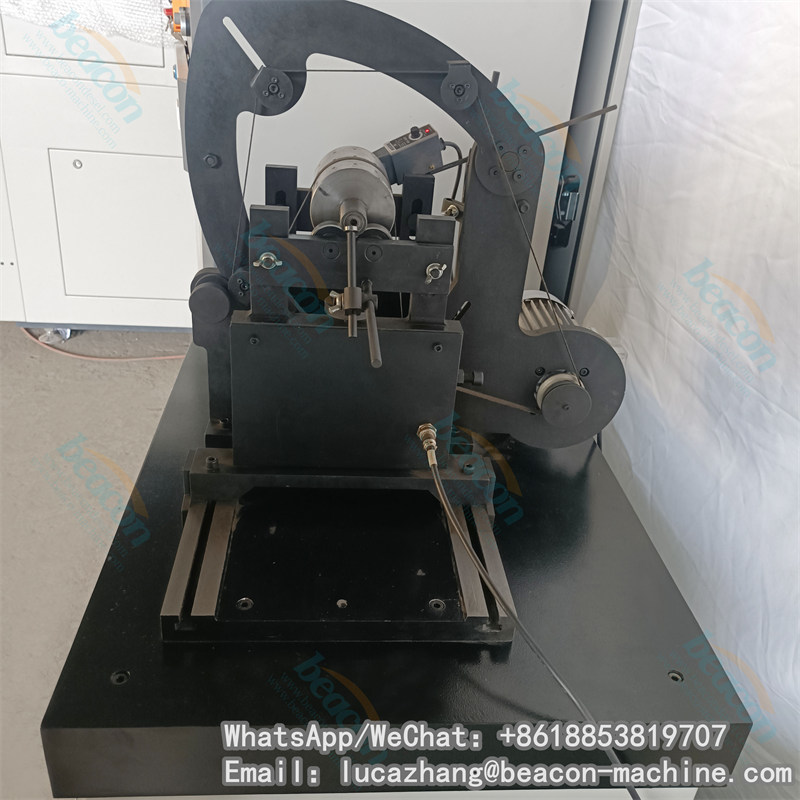

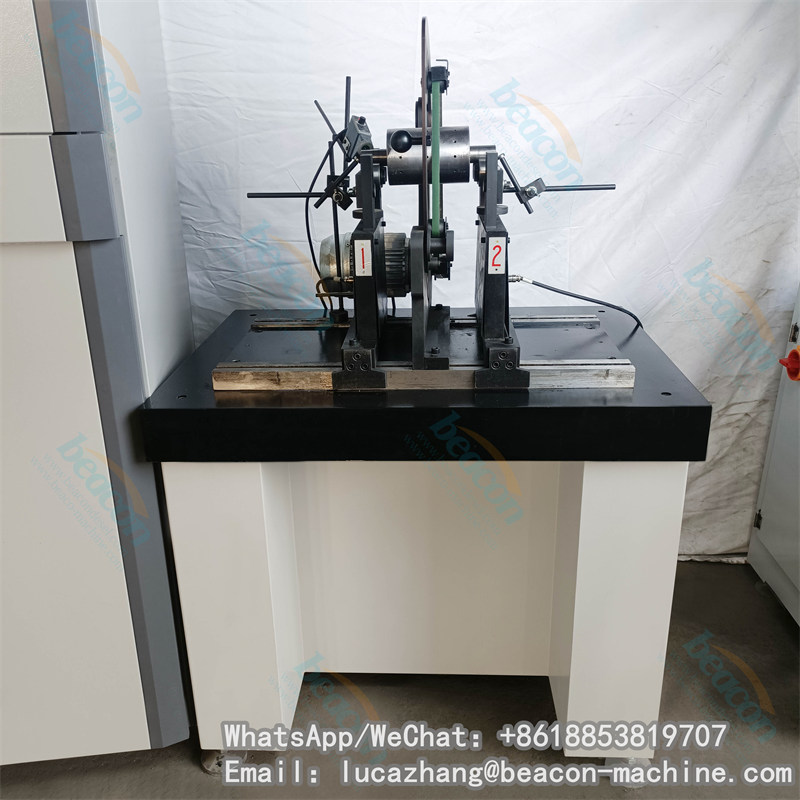

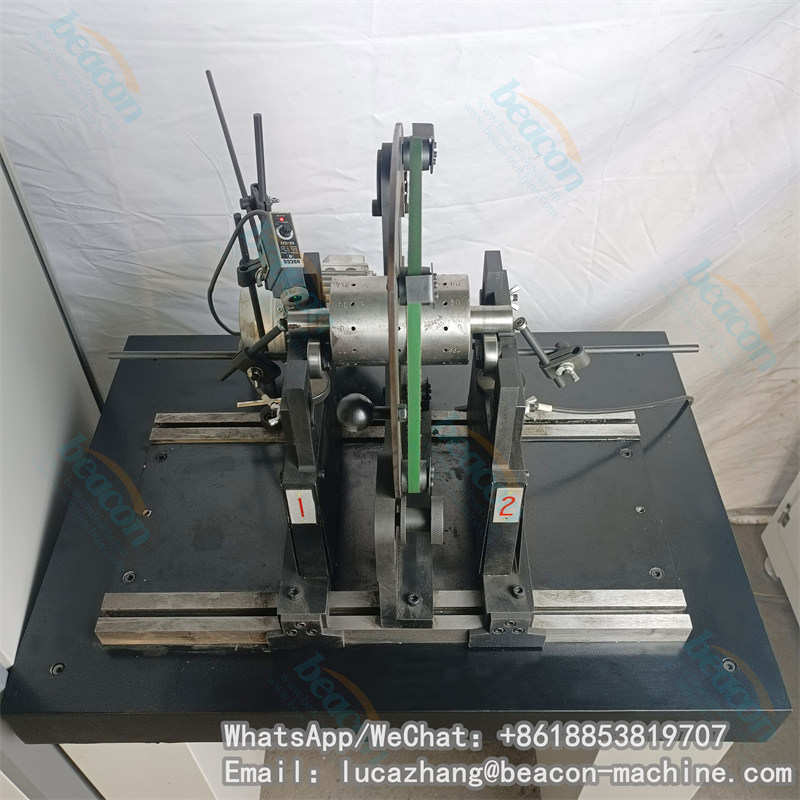

This series of equipment is hard support horizontal dynamic balance machine, with roller bearing, gimbal couplings drive, routine for double-speed motor drive, "A" type for variable frequency speed regulation system, an industrial control computer data processing LCD monitor real-time display imbalance, value, phase Angle and real-time speed, and lathe bed are integrally cast. Widely used in motor, blower, diesel engine, agricultural machinery, textile machinery and other industries, can be in the single side, double side and multiple correction plane balance measurement. Suitable for axle plate type and the barycenter overhanging rotor. With high efficiency and precision accurate, show intuitional, reliable quality, convenient maintenance characteristic.

parameter

Model： YYQ-16A
The measuring time：10s (measurement cycle can be arbitrary set).
Software version： Windows XP
display mode： 19 inch LCD
power supply： The power of three-phase four-wire type AC 380V, 50/60HZ
Working ： continuously
Work-piece quality range (Kg)： 16
Beam supporting interval distance (mm)： 60-600
Trunnion range (mm)： Φ 5-40
Workpiece diameter (mm)： 500
Balance speed (r/min)： 300-2500 variable frequency speed regulation
Motor power (KW)： 0.18
Unbalance reduction ratio% ： ≤90
Minimum can reach surplus balabcing (emar)： ≤0.5g・mm/kg
*Test data from Beacon laboratory

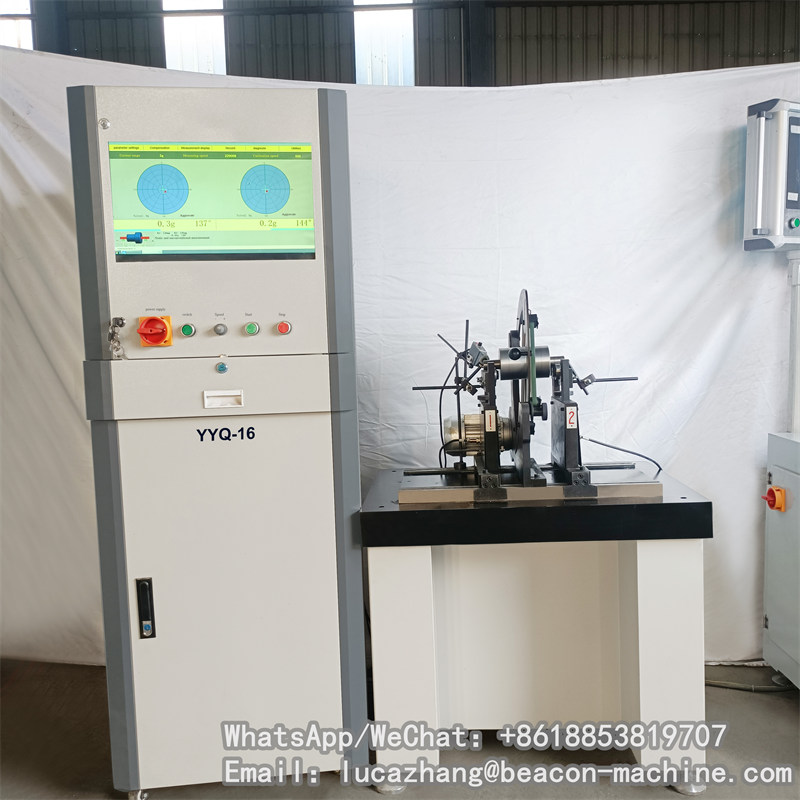

Beacon YYQ-16A Small fan balancing machine fully automatic balancing machine dynamic balancing machine for dynamic testing

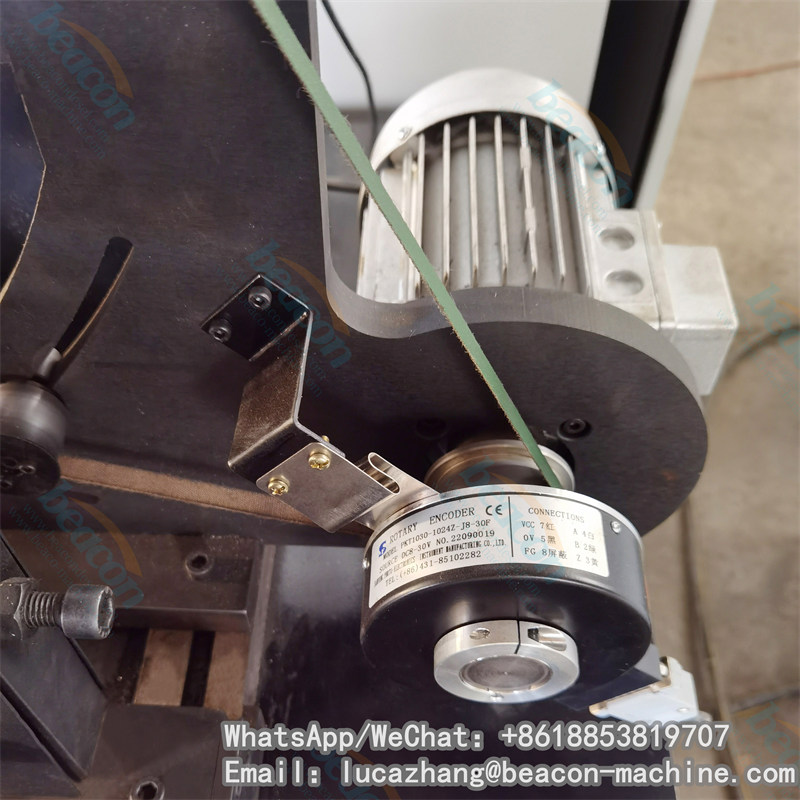

GB - 2000 universal microcomputer balance measurement system is Windows XP operating system under the latest general microcomputer balance measurement system, the system of running environment should be at least Windows95 operating system above. System hardware by multiple single chip microprocessor (CPU) composition, adopt double road high speed A/D converter, have program-controlled tracking amplification, program-controlled tracking filter, rotational speed real-time measurement, data real-time transmission and simulation benchmark signals, simulated vibration signal etc. Function. It make full use of the advantages of the Windows, the measurement system function extremely powerful. From the interface, data processing, print, data graphic display, documents graphics printout, without exception, reflects the Windows attractive. Concentrate on the design of balance measurement system to adapt in soft supporting.centre hard supporting and static balance and dynamic balance, and many other class balance equipment. And can realize a measurement system simultaneous measurement of multiple balance equipment. Realized balabcing size, phase, rotational speed of fully dynamic uninterruptedness measurement, measurement accuracy is greatly increased.

USE ENVIRONMENT
1) ℃ room-temperature: 0-50
2.) relative humidity < 85%
3.) industrial PC power supply voltage fluctuation 190-240V (when necessary user self-provided manostat), the power supply voltage fluctuation -9 400V.
4) machine should be installed in a stable basis, installation is spent in.2/1000 within.
5.) preventing electromagnetic interference, far from the interference.
6.) to prevent oil, salt, acid and corrosive gas enter.
7.) to prevent water, steam, dust, cotton, metal powder invading.
8.) banned in inflammable and explosive gas, flammable, liquid or solid, dangerous environment.
