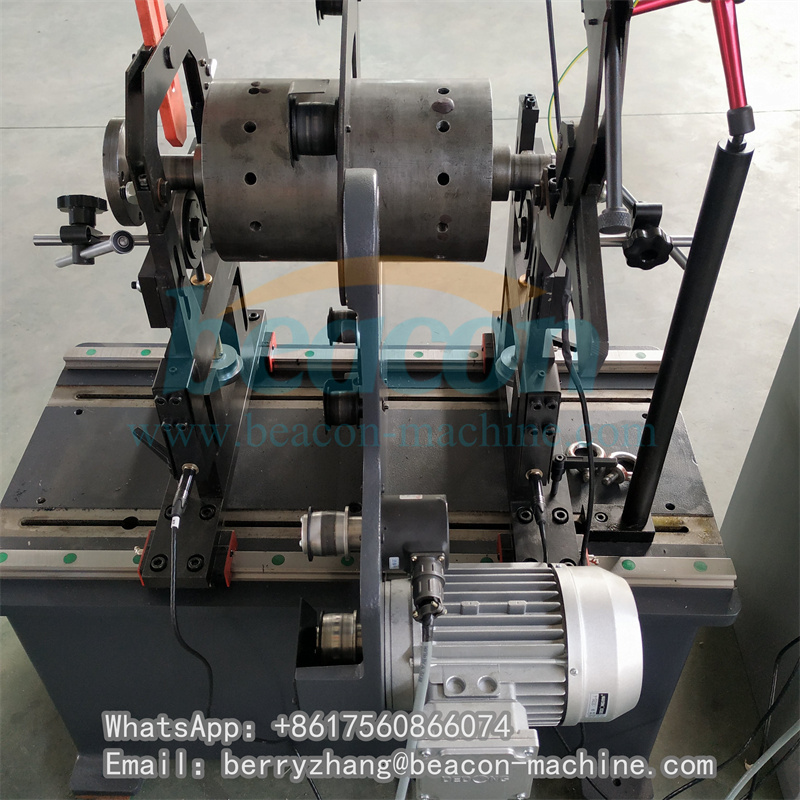

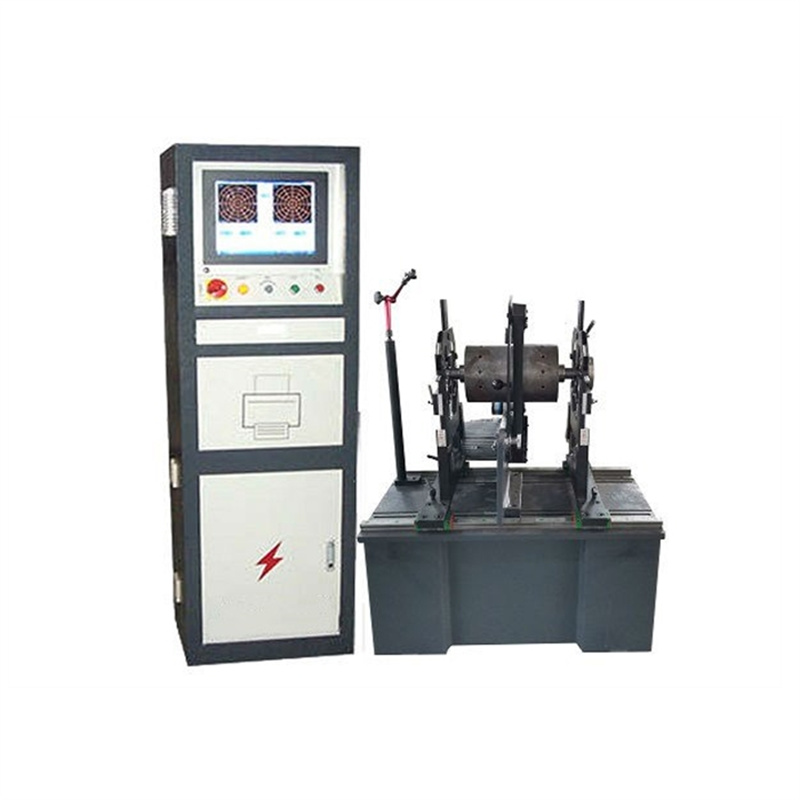

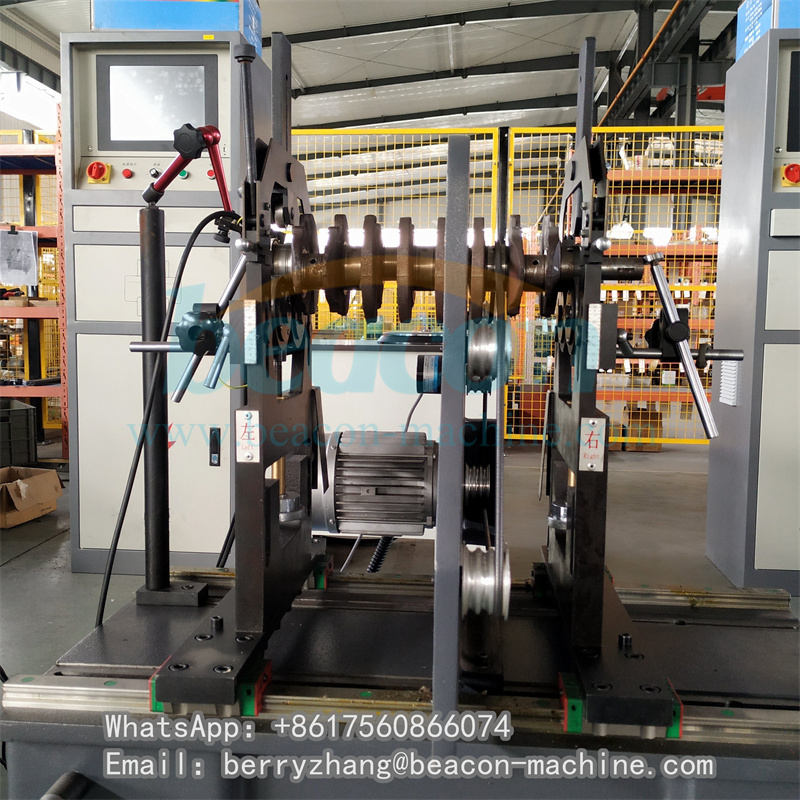

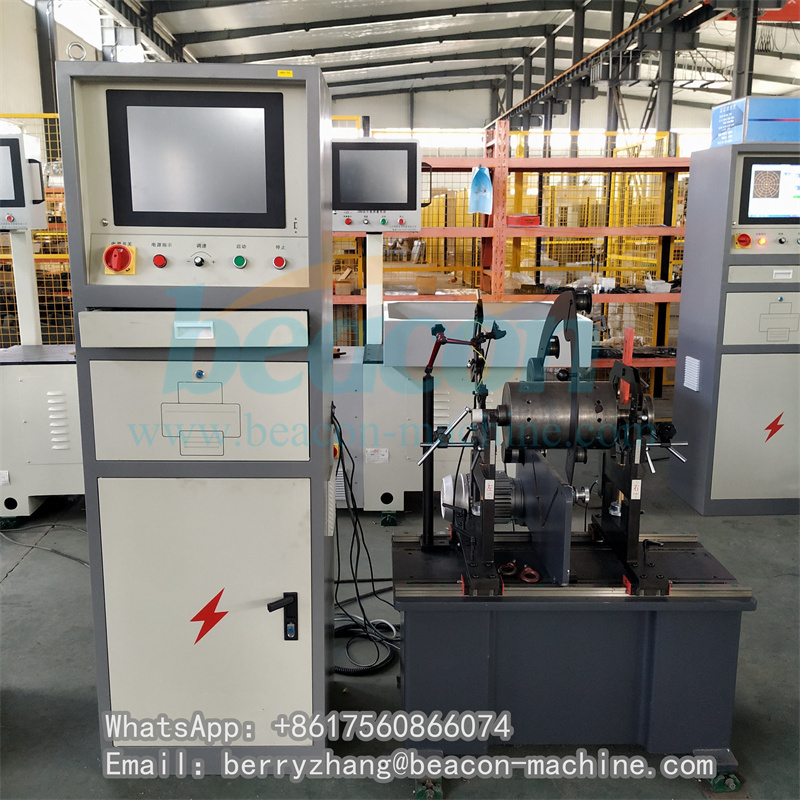

Beacon Yyq-50s Soft Bearing Dynamic Turbo Rotor Balancing Machine

1. Features:
General hard bearing dynamic balancing machine strictly according to GB/T4201-2006 to produce, using semi hard bearing, belt driven, screen display structure, industrial control computer processing the data. 19 inches LCD screen display unbalance amount, phase angle and real-time rotating speed. It is widely used in paper making machine, textile machine, agriculture machine, electric motor, blower fan, etc, can measuring balance on single interface, suited for plate work-piece, center of gravity overhung rotor.

2. Main technical index
Way of driving: belt driven and 0.75 kw motor
Measuring system: independent developed dynamic balancing machine special measuring software.

parameter

YYQ-50S dynamic balancing machine technical index:
1) weight of work-piece (kg): 1-50
2) Max diameter of work-piece (mm): φ900
3) Max diameter of scope of driving belt(mm): φ250
4) Max distance between two swing frame center(mm): 700
5) Length of lathe bed(mm): 800
6) Journal diameter scope of work-piece(mm): φ10-80(standard bearing roller frame)
7) Min achievable residual unbalance amount(gmm/kg): ≤0.5
8) Unbalance reduction ratio(%): ≥90
9) Rotating speed(r/min): 200-1500
10) Motor power(kw): 0.75
11) Drive mode: belt driven
12) Work environment: temperature: -5---45℃; humidity: 0-85%

*Test data from Beacon laboratory
