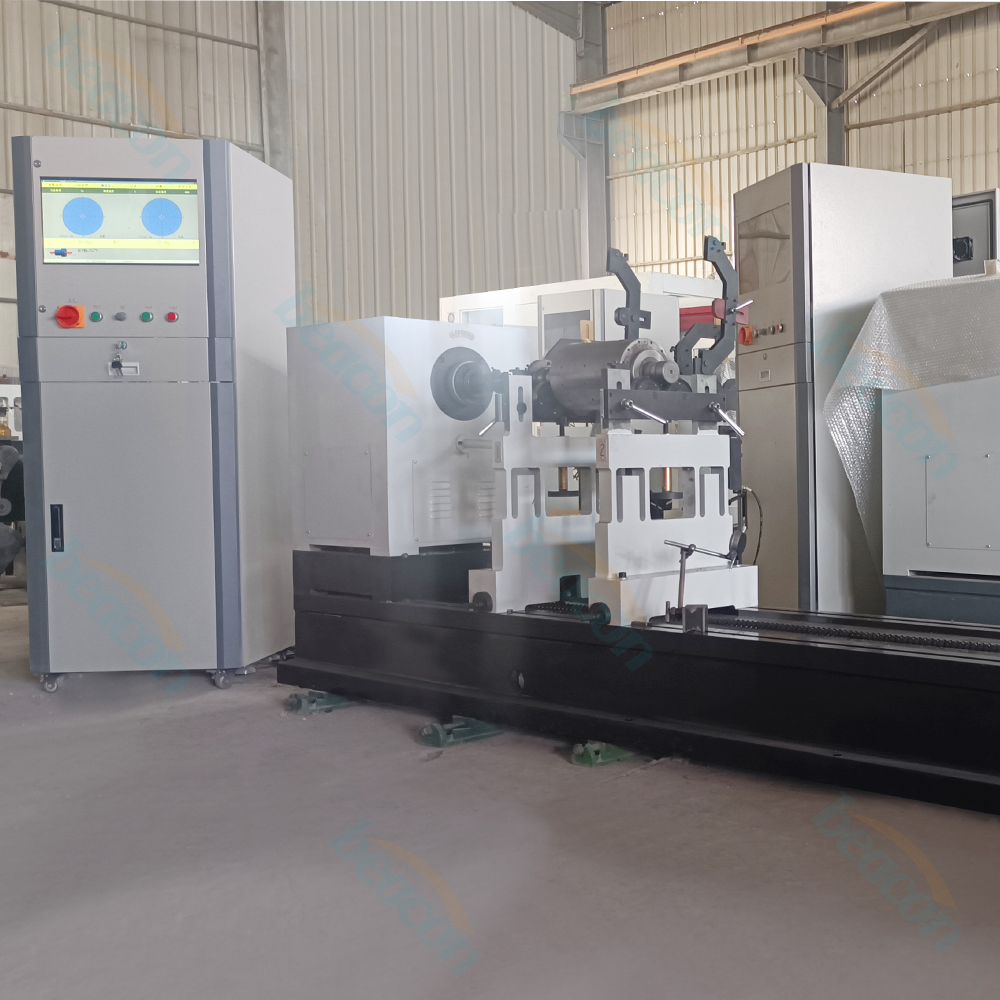

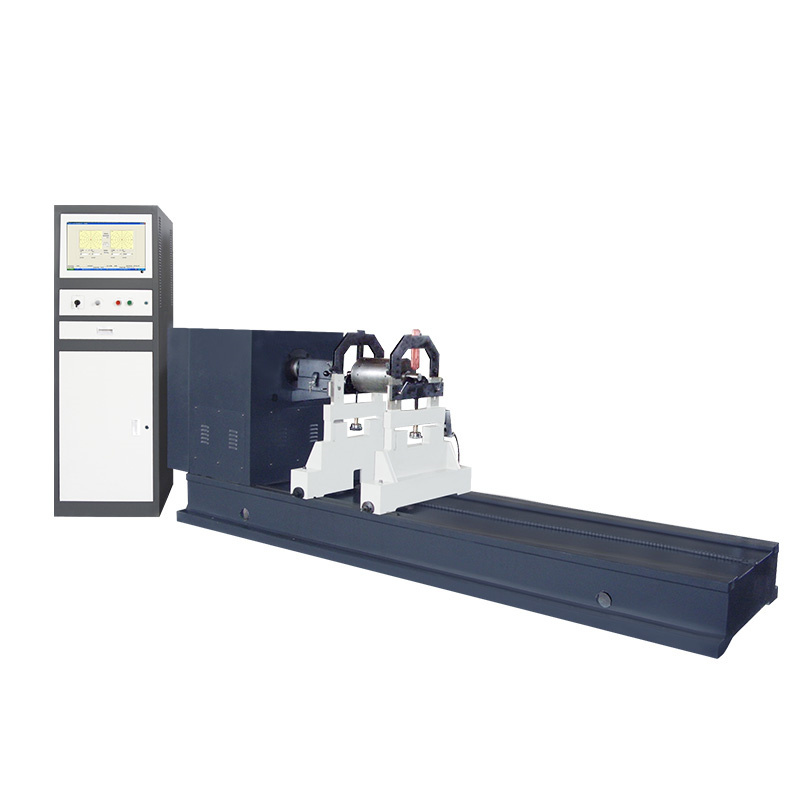

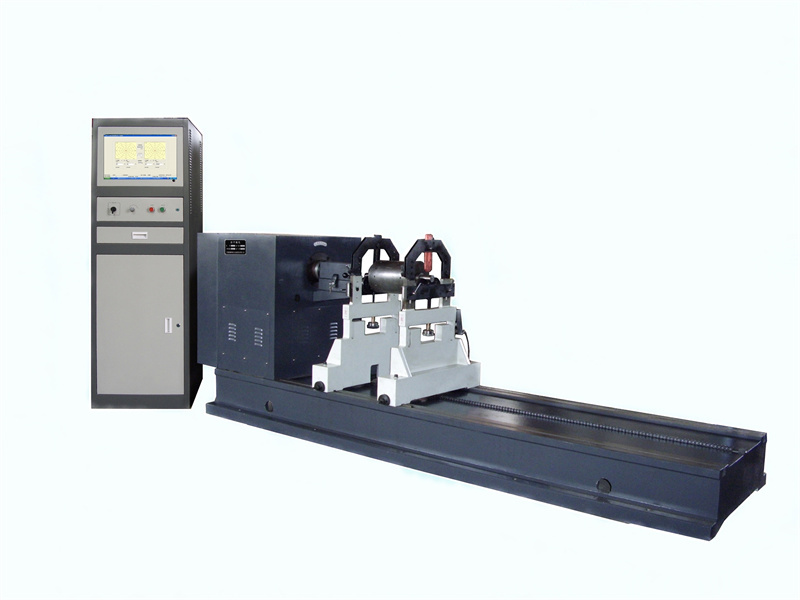

YYW-300S Schenck Balancing Machine Turbo Hard Bearing Cardan Shaft Dynamic Balance Machine

YYW-300S Schenck Balancing Machine Turbo Hard Bearing Cardan Shaft Dynamic Balance Machine

Quick Order

Introduction

1.Features:
General hard bearing dynamic balancing machine strictly according to GB/T 4201-2006 to produce, using roller bearing, universal joint driven, screen display structure, industrial control computer processing the data. 19 inches LCD screen display unbalance amount, phase angle and real-time rotating speed. It is widely used in paper making machine, textile machine, agriculture machine, electric motor, blower fan, etc, can measuring balance on single, double, multifaceted interface, suited for large axle, plate, center of gravity overhung rotor.
2.Main technical index
Way of driving: universal joint driven, 5.5 kw motor
Measuring system: independent developed dynamic balancing machine special measuring software.

parameter

1)weight of work-piece universal joint driven(kg):  10-300
2)Max diameter of work-piece universal joint driven(mm): φ1200
3)Distance between the two bearing frame(mm) :60-1800
4)Max distance from universal joint interface to right swing frame center(mm): 2000

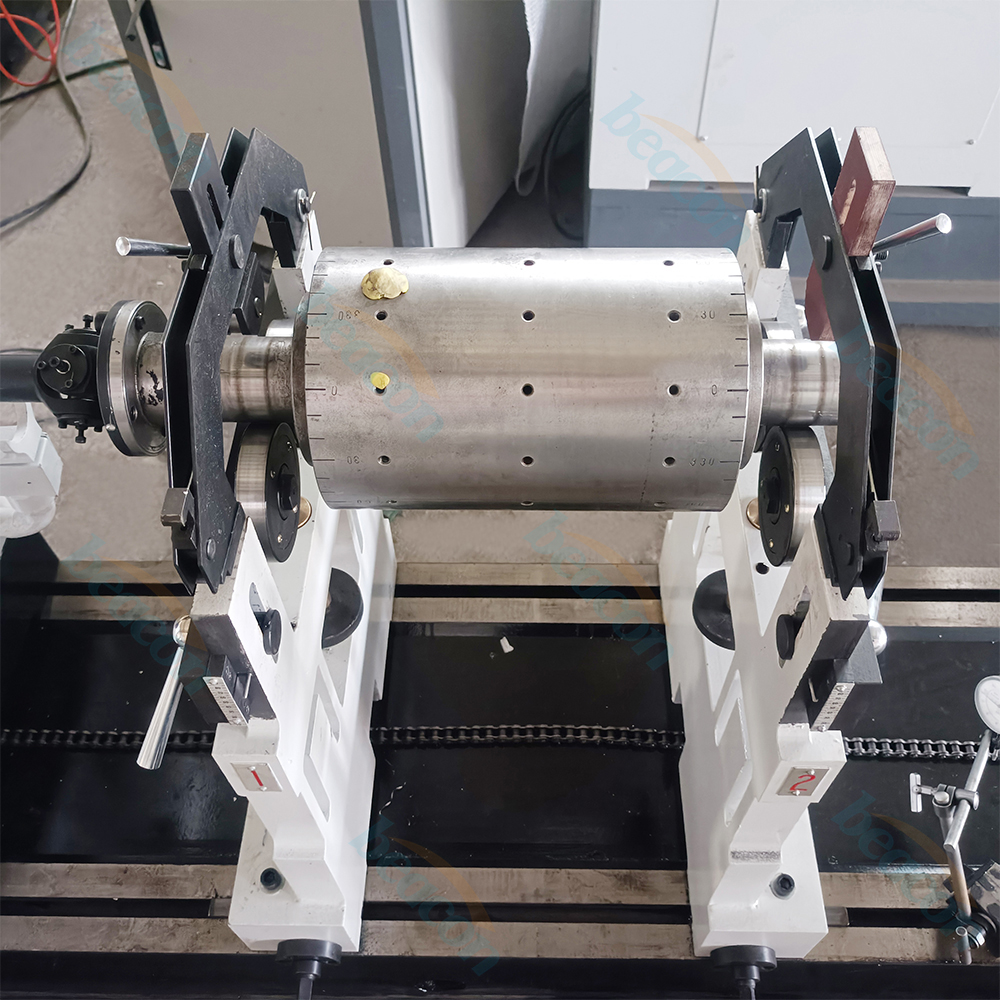

5)Journal diameter scope of work-piece(mm): φ20-90(standard bearing roller frame
6)Min achievable residual unbalance amount(gmm/kg):  ≤1
7)Unbalance reduction ratio(%):   ≥90
8)Rotating speed(r/min):  200-1500
9)Motor power(kw): 5.5
10)Drive mode:  universal spindle coupling
11)Work environment:
temperature: -5---45℃;
humidity: 0-85%

*Test data from Beacon laboratory
