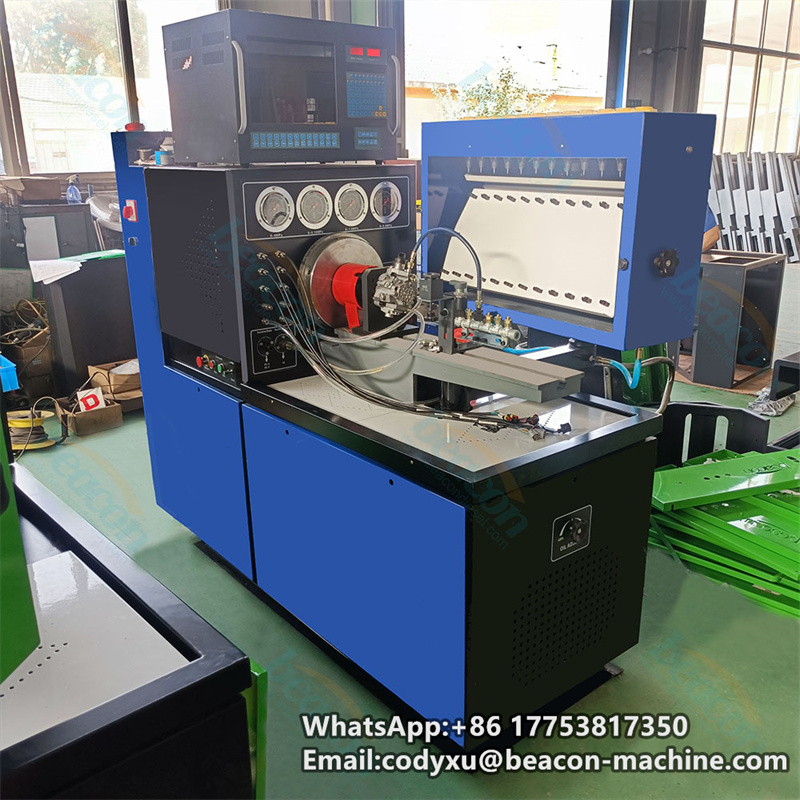

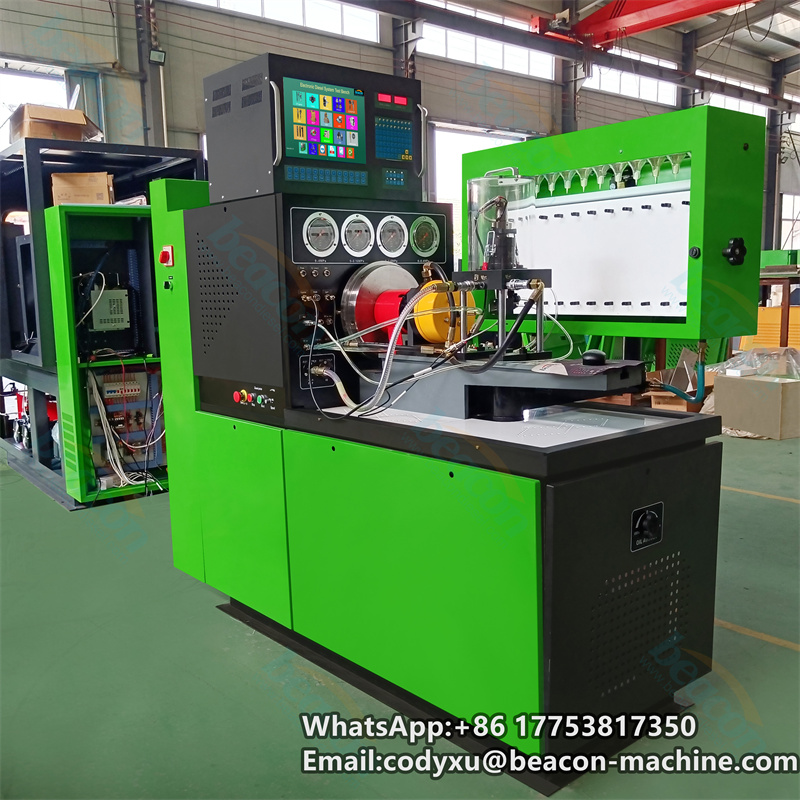

Common Rail Injector Test Bench CRS900S Diesel Injection Pump Test Bench With Beijing Common Rail System

Common Rail Injector Test Bench CRS900S Diesel Injection Pump Test Bench With Beijing Common Rail System

Main function

1. Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
12. Checking the travel of stroke (on request)

10. Built-in air resource

Model Number：CRS900S
TYPE：Common Rail Piezo Injector pump calibration Machine
Power：standard
Weight：880kg
Color：Customized
power：11kw, 15kw optional
Oil pump rotation speed：0-4000 bar
Test rang of rail pressure：0-2500 bar
Capacity of tank：80L
Dimension：190*98*172CM
Filter precision of test oil：40±2℃

*Test data from Beacon laboratory
