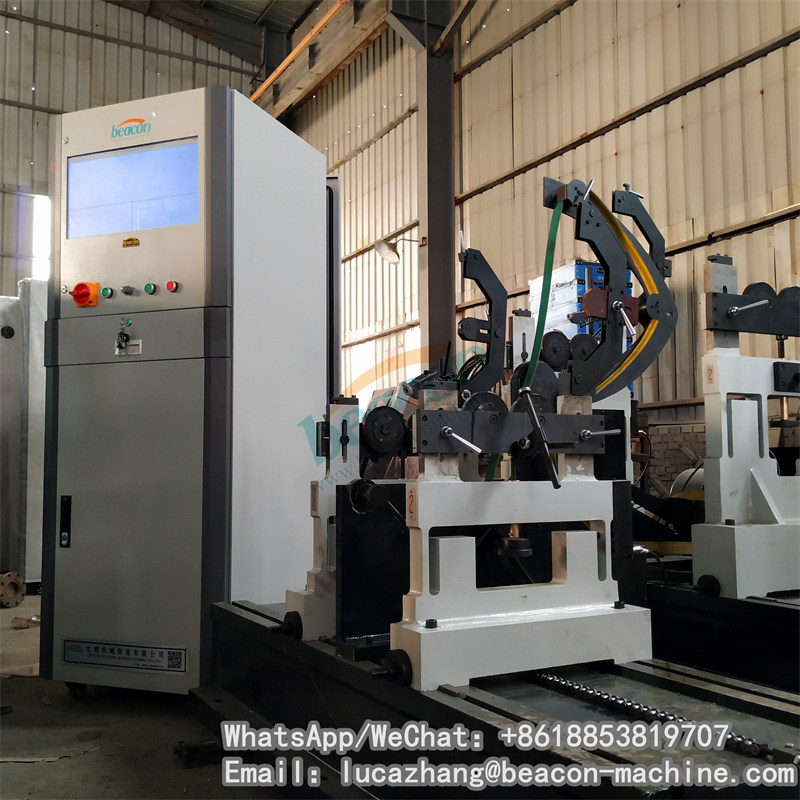

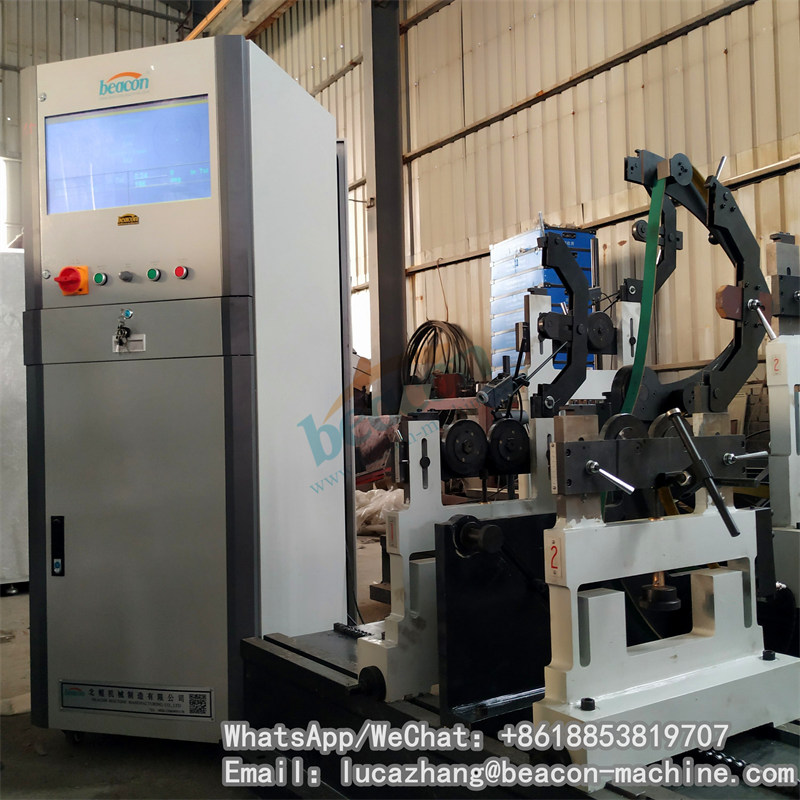

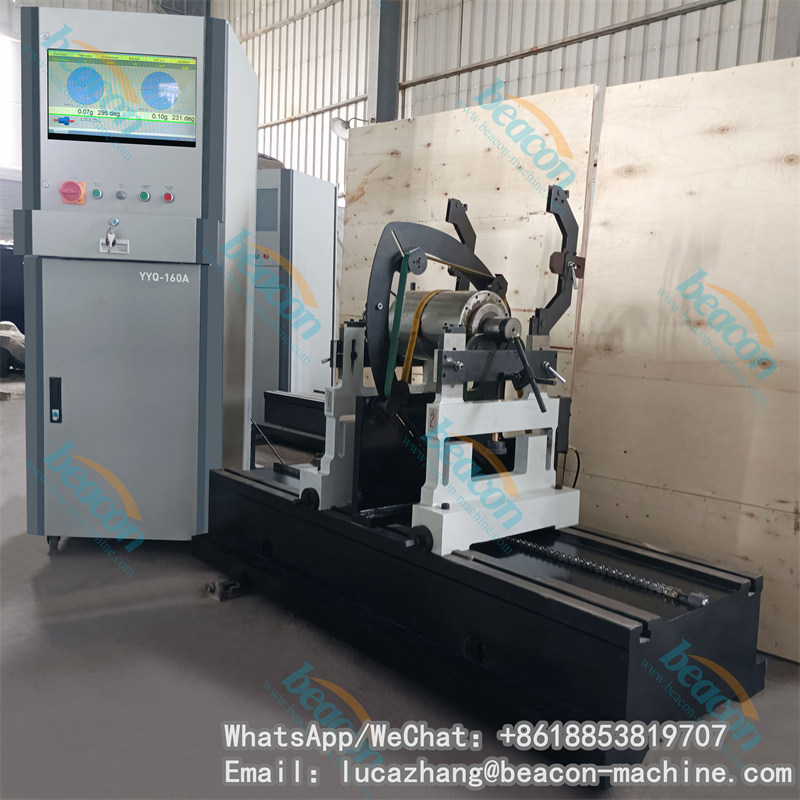

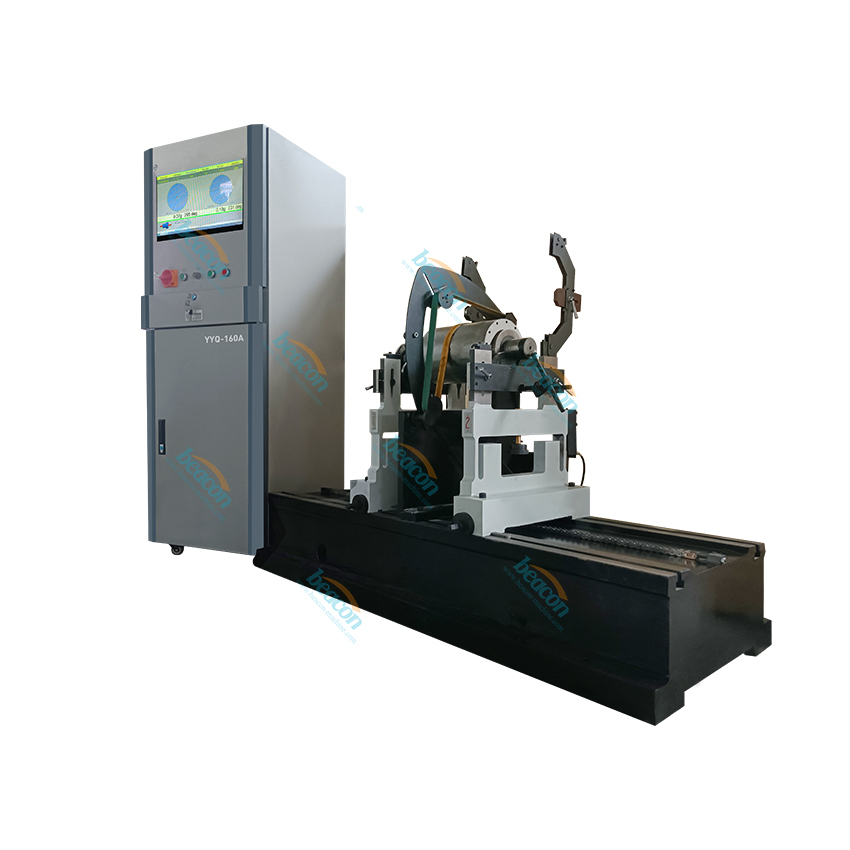

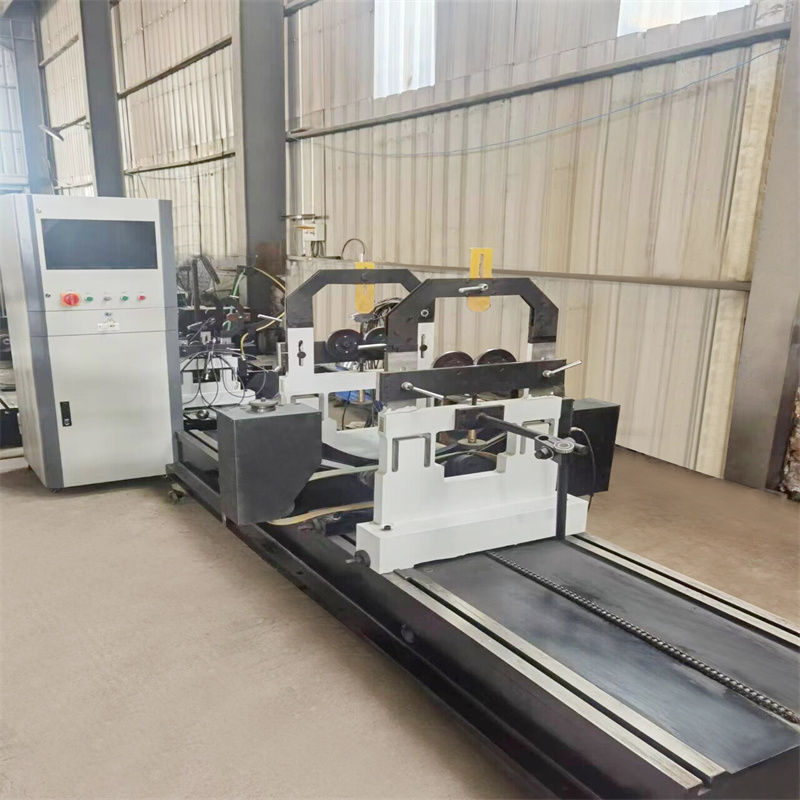

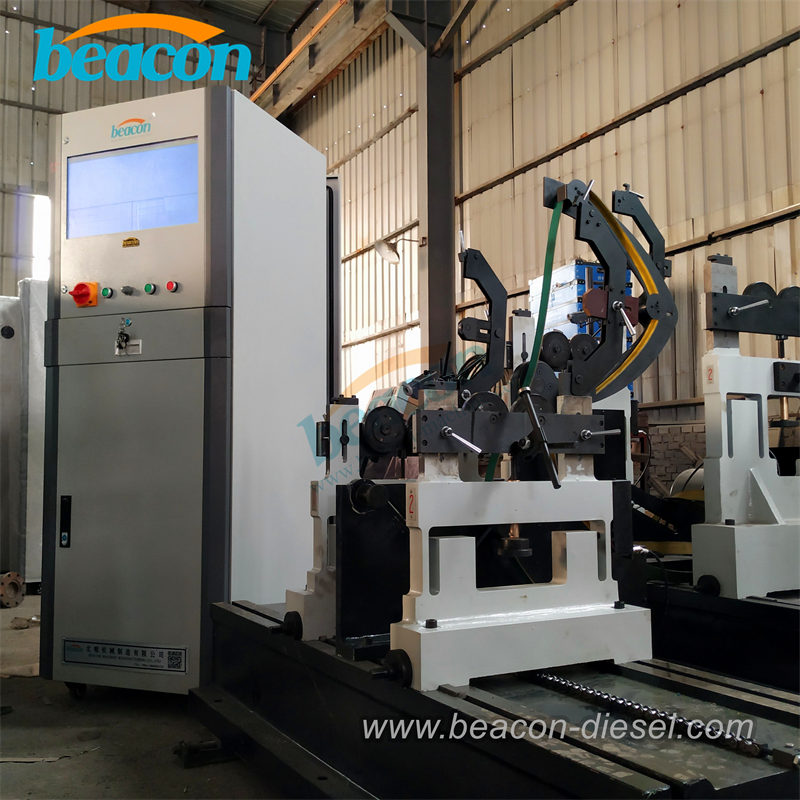

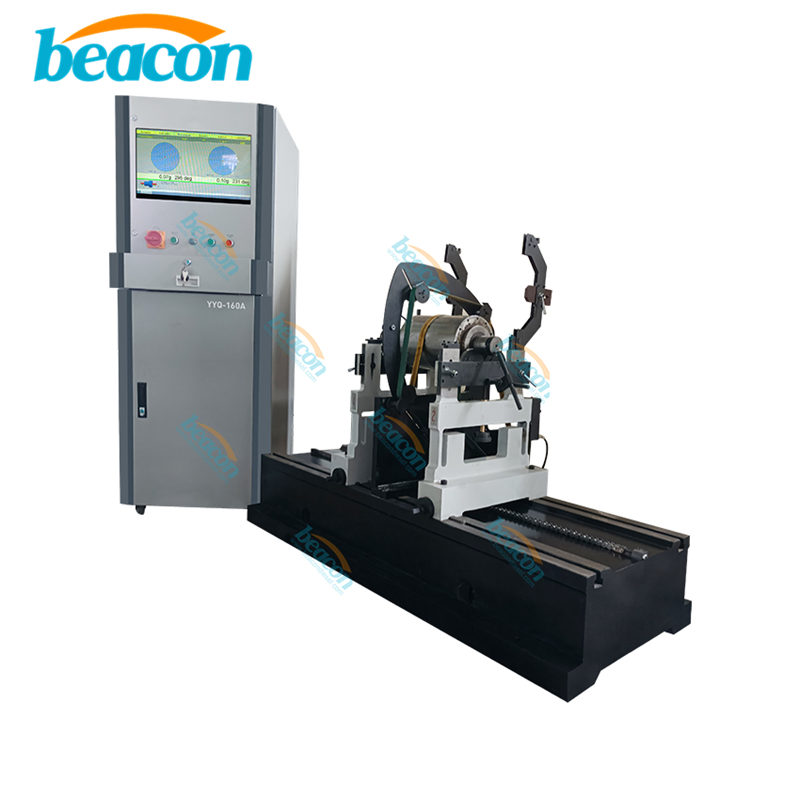

Beacon YYQ-160A Belt drive balancing Machine High precision Horizontal Belt Driven Balancing Machine

Introduction

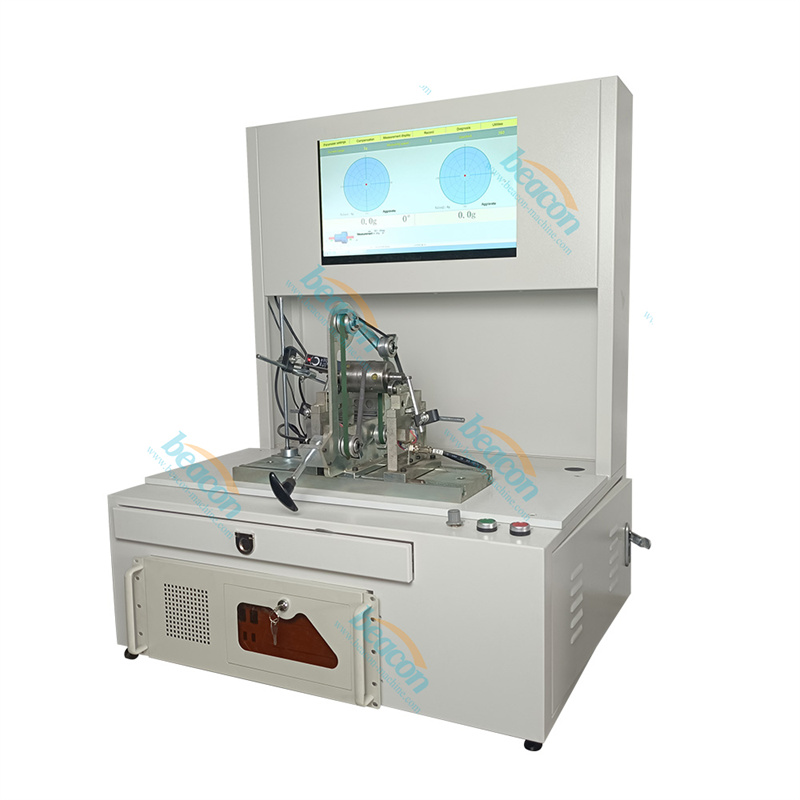

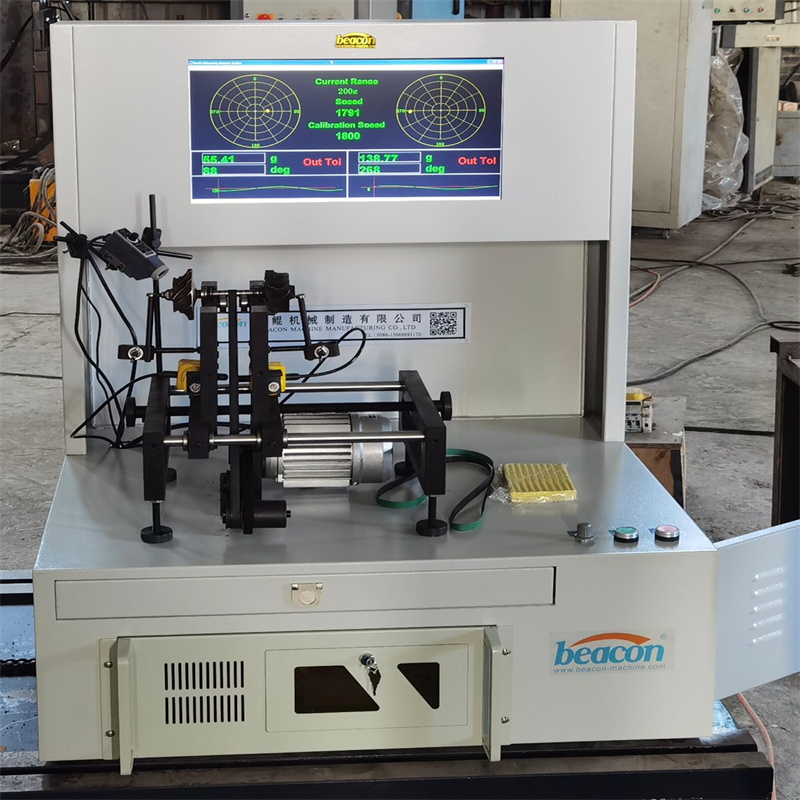

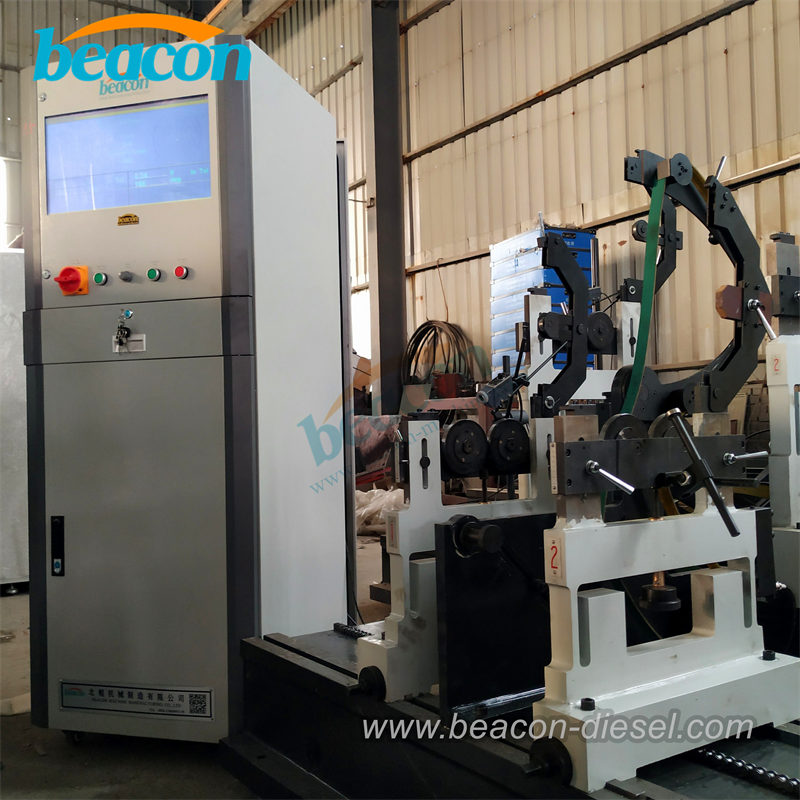

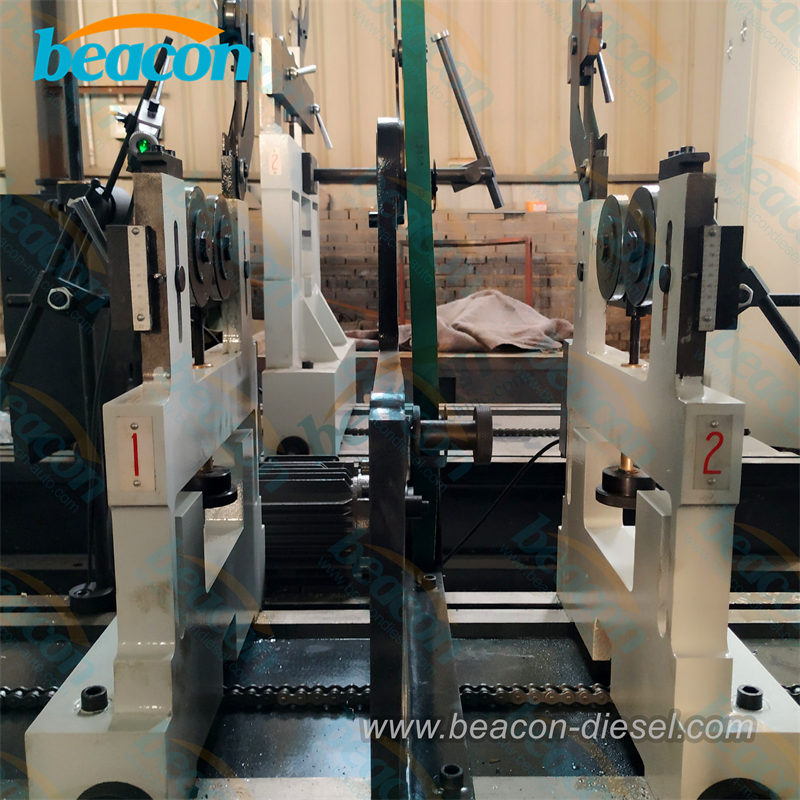

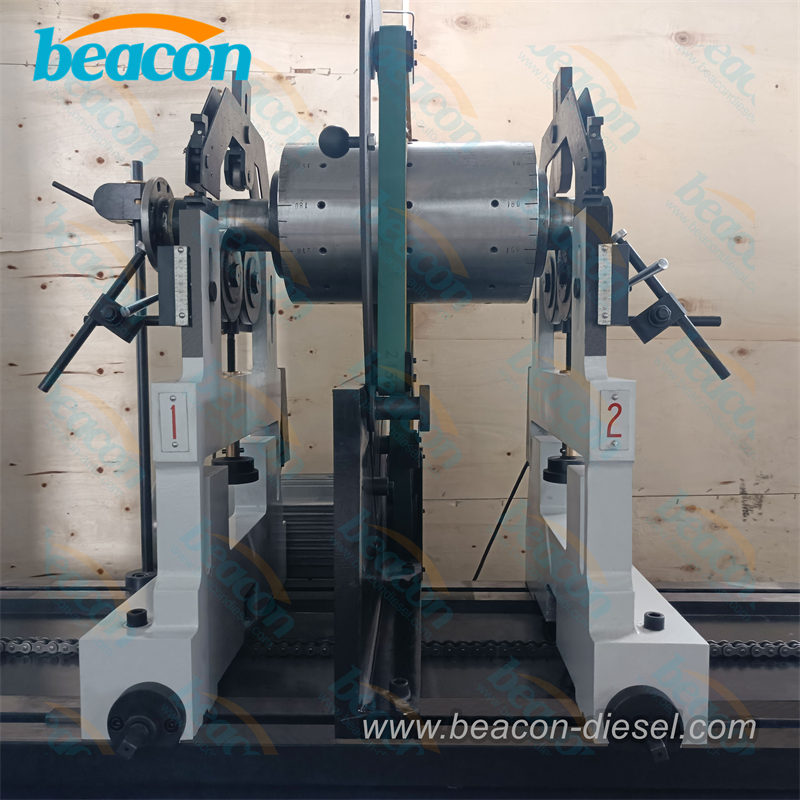

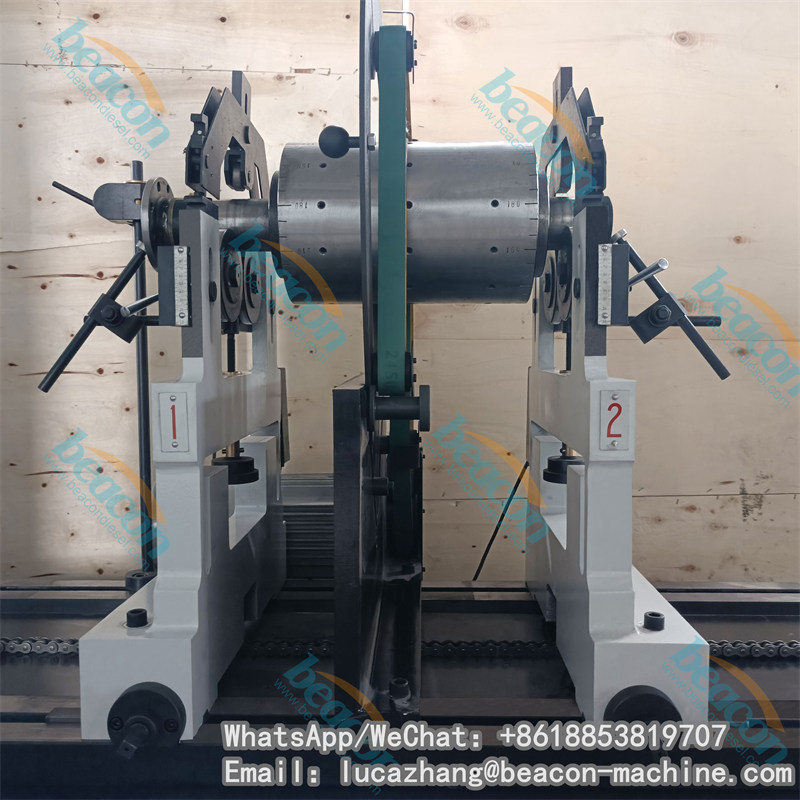

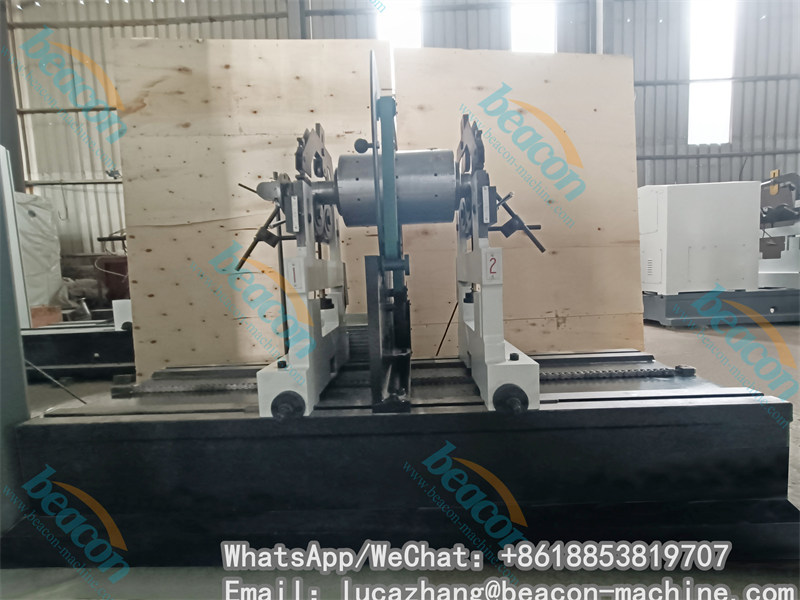

This series of equipment is a hard-support horizontal dynamic balance machine, with roller bearings, universal coupling drive, conventional double-speed motor drive, "a" type frequency conversion speed regulation system, LCD display Industrial control computer data processing, real-time display imbalance, values, phase angles and speed in real time, and integral casting of the bed body. Widely used in motors, blowers, diesel engines, agricultural machinery, textile machinery and other industries, can correct single-sided, double-sided and many-times plane balance measurement. Suitable for axle plate and center of gravity rotors. It has the characteristics of high efficiency, precise precision, intuitiveness, reliable quality and convenient maintenance.

parameter

Model： YYQ-160A
EThe measuring time：10s (measurement cycle can be arbitrary set).
Software： version Windows XP
display mode： 19 inch LCD
power supply： The power of three-phase four-wire type AC 380V, 50/60HZ
Working ： continuously
Workpiece quality range (Kg)： 50
Beam supporting interval distance (mm)： 60-1300
Trunnion range (mm)： Φ 10-90
Workpiece diameter (mm)： 950
Balance speed (r/min)： 300-2500 variable frequency speed regulation
Motor power (KW)： 1.5
Unbalance reduction ratio% ： ≤90
Minimum can reach surplus balabcing (emar)： ≤0.5g・mm/kg
*Test data from Beacon laboratory

product video

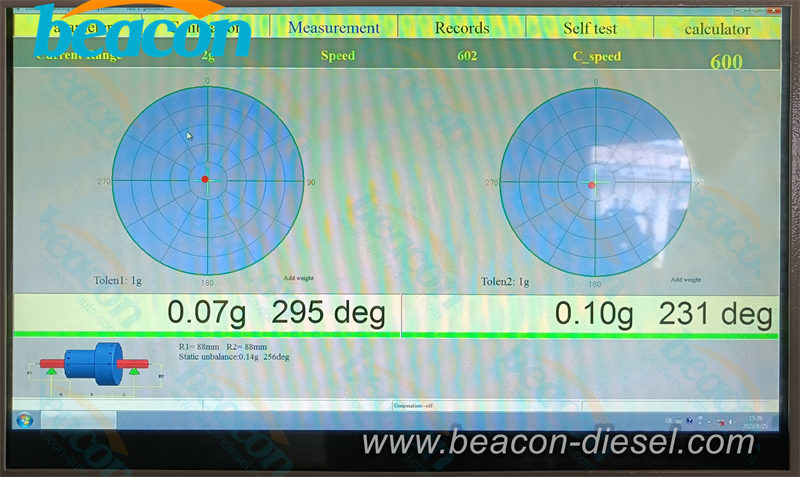

GB - 2000 universal microcomputer balance measurement system is Windows XP operating system under the latest general microcomputer balance measurement system, the system of running environment should be at least Windows95 operating system above. System hardware by multiple single chip microprocessor (CPU) composition, adopt double road high speed A/D converter, have program-controlled tracking amplification, program-controlled tracking filter, rotational speed real-time measurement, data real-time transmission and simulation benchmark signals, simulated vibration signal etc. Function. It make full use of the advantages of the Windows, the measurement system function extremely powerful. From the interface, data processing, print, data graphic display, documents graphics printout, without exception, reflects the Windows attractive. Concentrate on the design of balance measurement system to adapt in soft supporting.centre hard supporting and static balance and dynamic balance, and many other class balance equipment. And can realize a measurement system simultaneous measurement of multiple balance equipment. Realized balabcing size, phase, rotational speed of fully dynamic uninterruptedness measurement, measurement accuracy is greatly increased.

1) ℃ room-temperature: 0-50
2.) relative humidity < 85%
3.) industrial PC power supply voltage fluctuation 190-240V (when necessary user self-provided manostat), the power supply voltage fluctuation -9 400V.

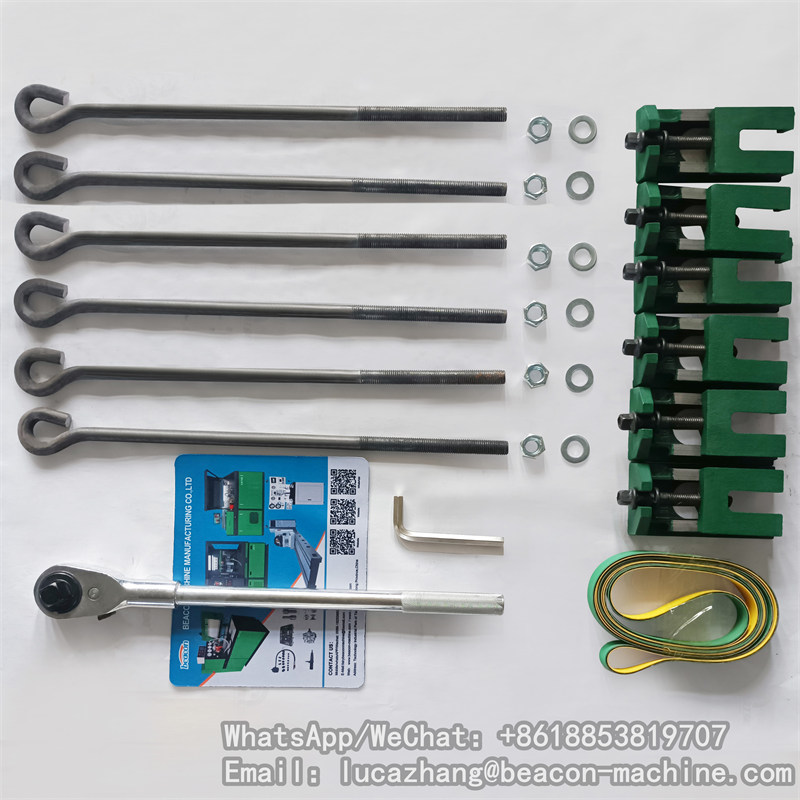

4) machine should be installed in a stable basis, installation is spent in.2/1000 within.
5.) preventing electromagnetic interference, far from the interference.
6.) to prevent oil, salt, acid and corrosive gas enter.
7.) to prevent water, steam, dust, cotton, metal powder invading.
8.) banned in inflammable and explosive gas, flammable, liquid or solid, dangerous environment.
